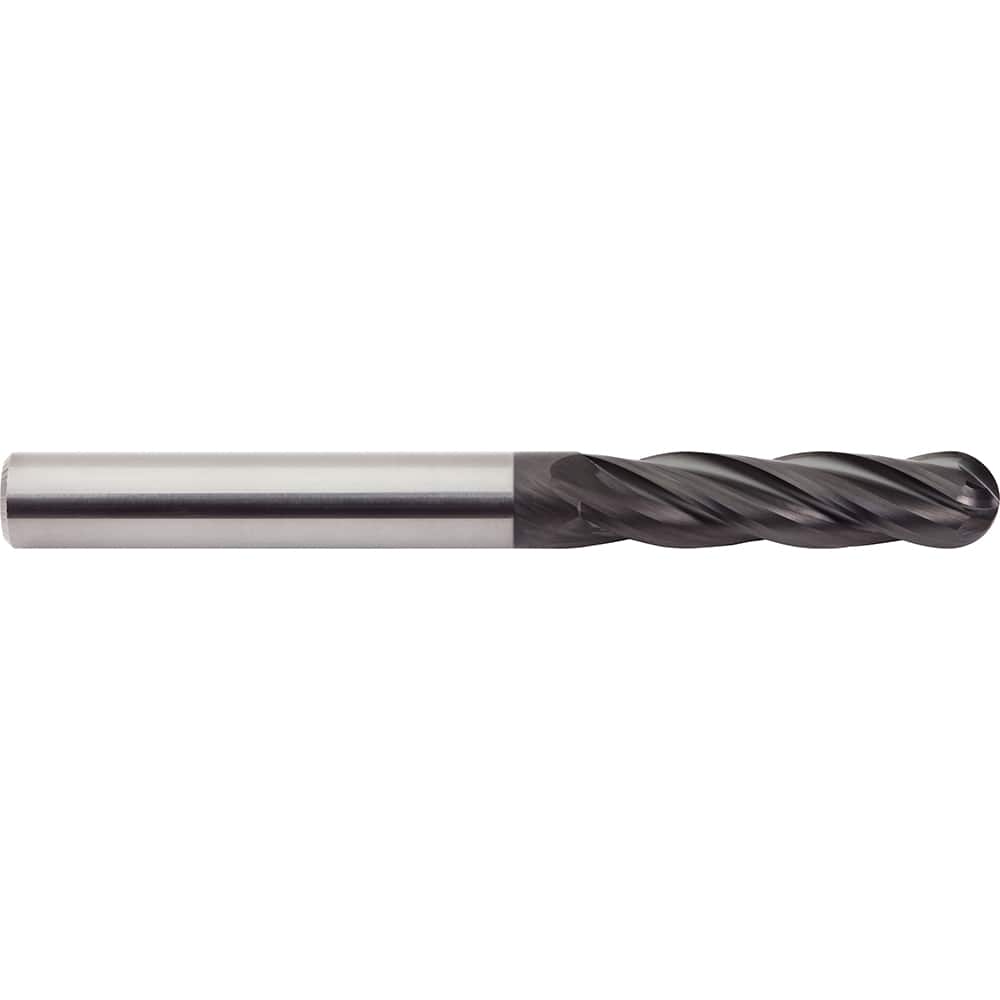

Ball End Mill: 0.1875″ Dia, 1″ LOC, 4 Flute, Solid Carbide 2-1/2″ OAL, 3/16″ Shank Dia, 30 ° Helix, GemX Coated, Single End, Series 140
Item #: 18724070
Brand: M.A. Ford?
Model #: 140L1875GX
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Length Type | Long |
| Helix Style | Medium |
| Shank Diameter (Inch) | 3/16 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 140 |
| Flute Type | Helical |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | GemX |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
