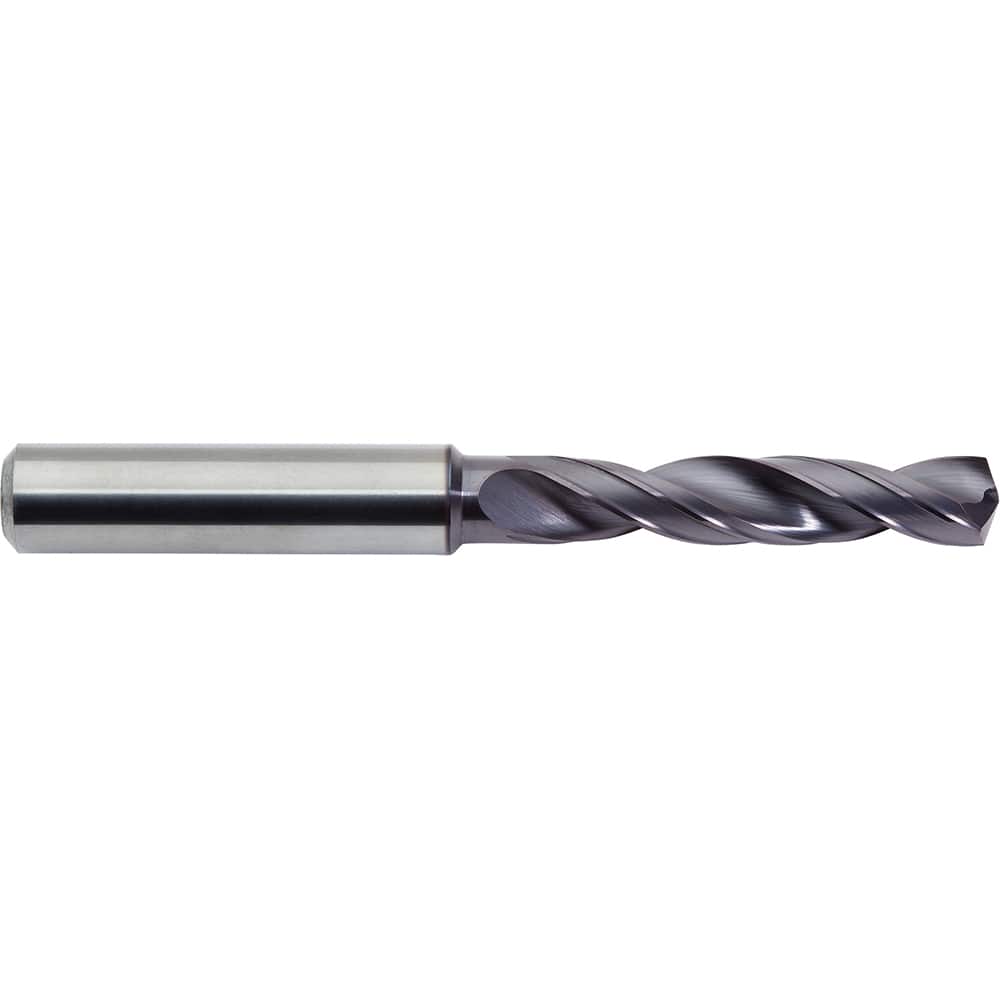

Screw Machine Length Drill Bit: 0.7283″ Dia, 142 °, Solid Carbide ALtima Plus Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 18703033
Brand: M.A. Ford?
Model #: CXDSS 1850AP
Product Specifications
| Drill Bit Size (mm) | 18.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | ALtima Plus |
| Drill Point Angle | 142 |
| Spiral Type | Right Hand |
| Flute Type | Helical |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Bit Size (Decimal Inch) | 0.7283 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Shank Diameter (mm) | 20.00 |
| Number of Margins | 2 |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 79.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
