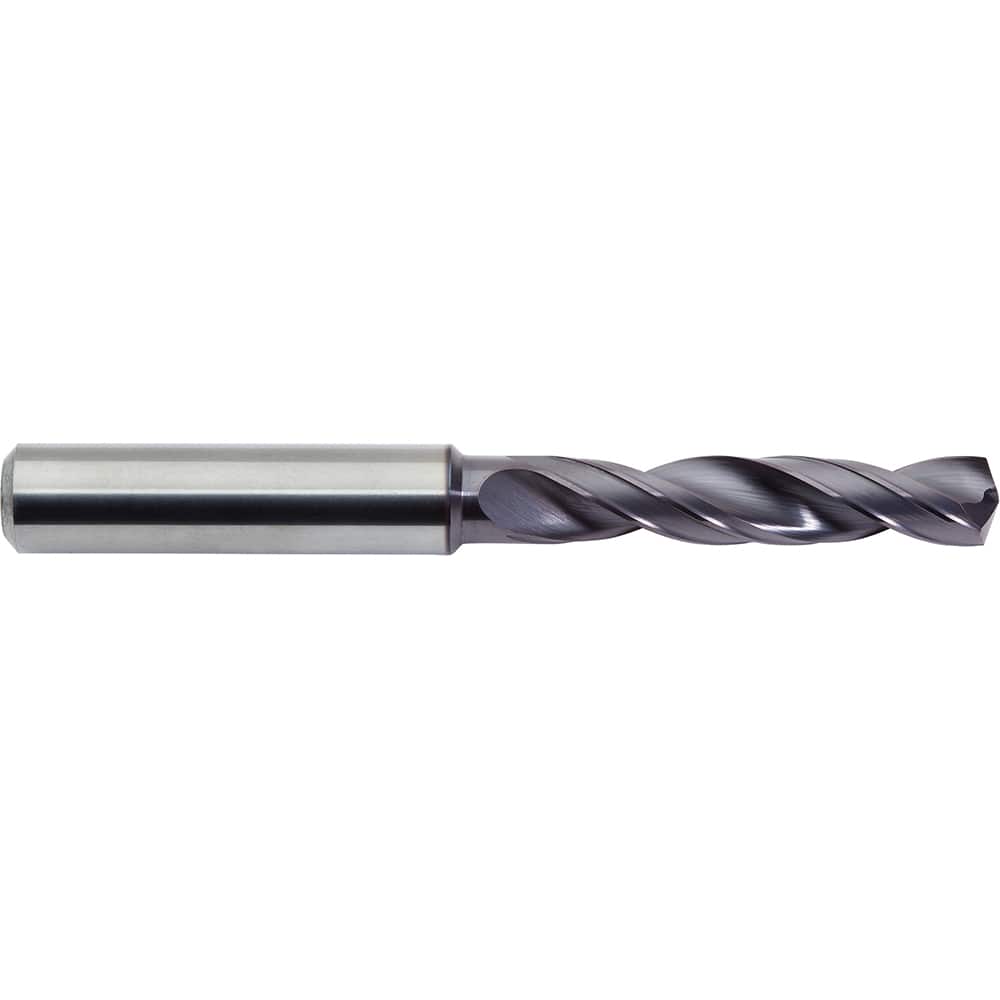

M.A. Ford - Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.1496 ; Drill Bit Size (mm): 3.80 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
Item #: 18701995
Brand: M.A. Ford
Model #: CXDSS 0380AP
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.1496 ; Drill Bit Size (mm): 3.80 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
| Drill Bit Size (Decimal Inch) | 0.1496 |
| Drill Bit Size (mm) | 3.80 |
| Drill Point Angle | 142 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | ALtima? Plus |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 24.00 |
| Overall Length (mm) | 66.0000 |
| Overall Length (Decimal Inch) | 2.59840 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Number of Flutes | 2 |
| Spiral Type | Right Hand |
| Number of Margins | 2.000 |
| Series/List | CXDSS |
| Length Type | Stub |
