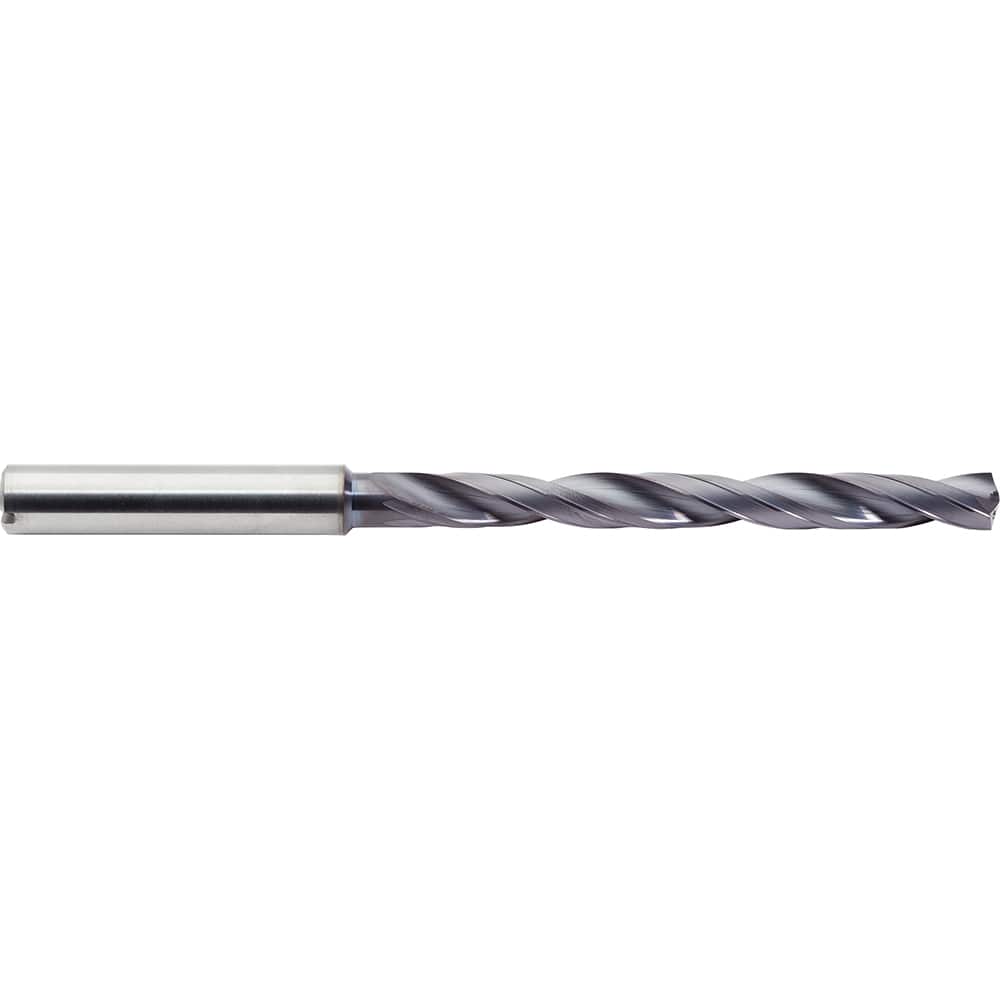

M.A. Ford - Taper Length Drill Bits; Drill Bit Size (mm): 3.40 ; Drill Bit Size (Decimal Inch): 0.1339 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
Item #: 18695585
Brand: M.A. Ford
Model #: CXDCLM0340AP
Product Specifications
Taper Length Drill Bits; Drill Bit Size (mm): 3.40 ; Drill Bit Size (Decimal Inch): 0.1339 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
| Drill Bit Size (mm) | 3.40 |
| Drill Bit Size (Decimal Inch) | 0.1339 |
| Drill Point Angle | 142 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | ALtima? Plus |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Helical |
| Flute Length (mm) | 44.00 |
| Overall Length (mm) | 92.0000 |
| Shank Diameter (mm) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Flute Length x Diameter Ratio | 8xD |
| Series/List | CXDCL |
