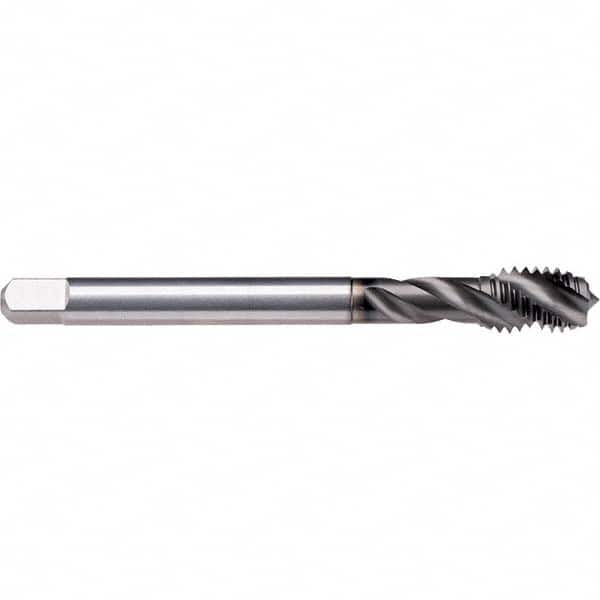

Spiral Flute Tap: 3/4-10, UNC, 3 Flute, Modified Bottoming, H11 Class of Fit, Cobalt, GLT-1 Finish 1.181″ Thread Length, 4.921″ OAL, Right Hand Flute, Right Hand Thread, H11, Series CU50C344
Item #: 18458877
Brand: Emuge
Model #: CU50C344.5016
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 3/4-10 |
| Thread Standard | UNC |
| Thread Limit | H11 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 4.9210 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Amount Oversize (Decimal Inch) | 0.0050 |
| Application | Blind Hole Threading |
| Oversize | Yes |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Size (Decimal Inch) | 0.4420 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | CU50C344 |
| Coolant Through | No |
| Teeth per Inch | 10 |
| Number Of Flutes | 3 |
| Class Of Fit | H11 |
