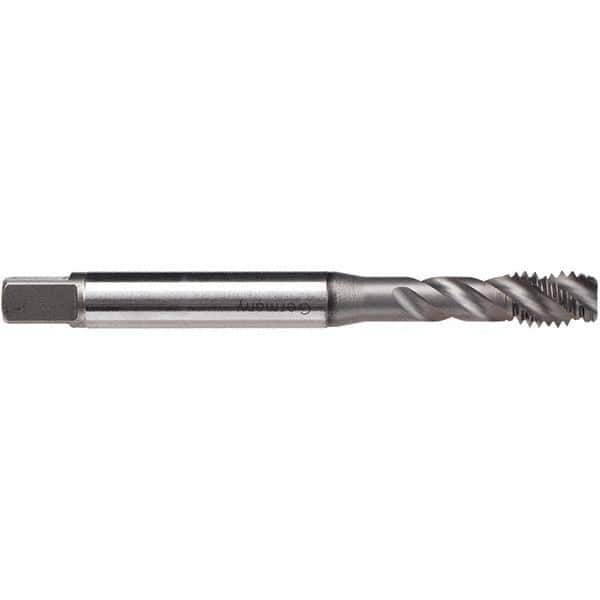

Spiral Flute Tap: 1/4-28, UNF, 3 Flute, Modified Bottoming, 3B Class of Fit, Cobalt, GLT-1 Finish 0.394″ Thread Length, 3.15″ OAL, Right Hand Flute, Right Hand Thread, H3, Series BU99C410
Item #: 18458331
Brand: Emuge
Model #: BU99C410.5043
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 1/4-28 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 3.1500 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Neck Length (Decimal Inch) | 1.1810 |
| Tapping Depth (Decimal Inch) | 1.1810 |
| Square Size (Decimal Inch) | 0.1910 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | BU99C410 |
| Coolant Through | Yes |
| Teeth per Inch | 28 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
