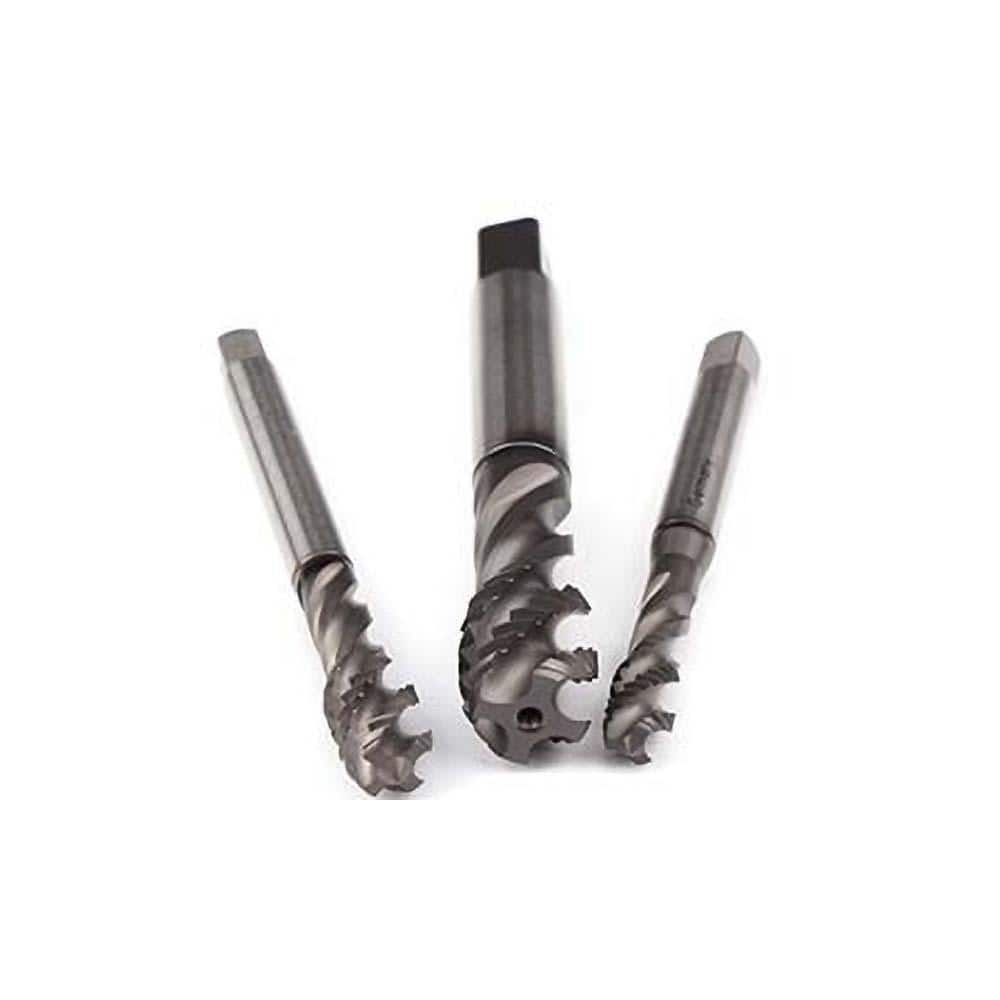

Spiral Flute Tap: #1-72, UNF, 2 Flute, Bottoming, 2B Class of Fit, Cobalt, GLT-1 Finish 0.157″ Thread Length, 1.772″ OAL, Right Hand Flute, Right Hand Thread, H3, Series BU51C400
Item #: 18458042
Brand: Emuge
Model #: BU51C400.5034
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | #1-72 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 1.7720 |
| Chamfer | Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.4720 |
| Tapping Depth (Decimal Inch) | 0.4720 |
| Square Size (Decimal Inch) | 0.1100 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | BU51C400 |
| Coolant Through | No |
| Teeth per Inch | 72 |
| Number Of Flutes | 2 |
| Class Of Fit | 2B |
