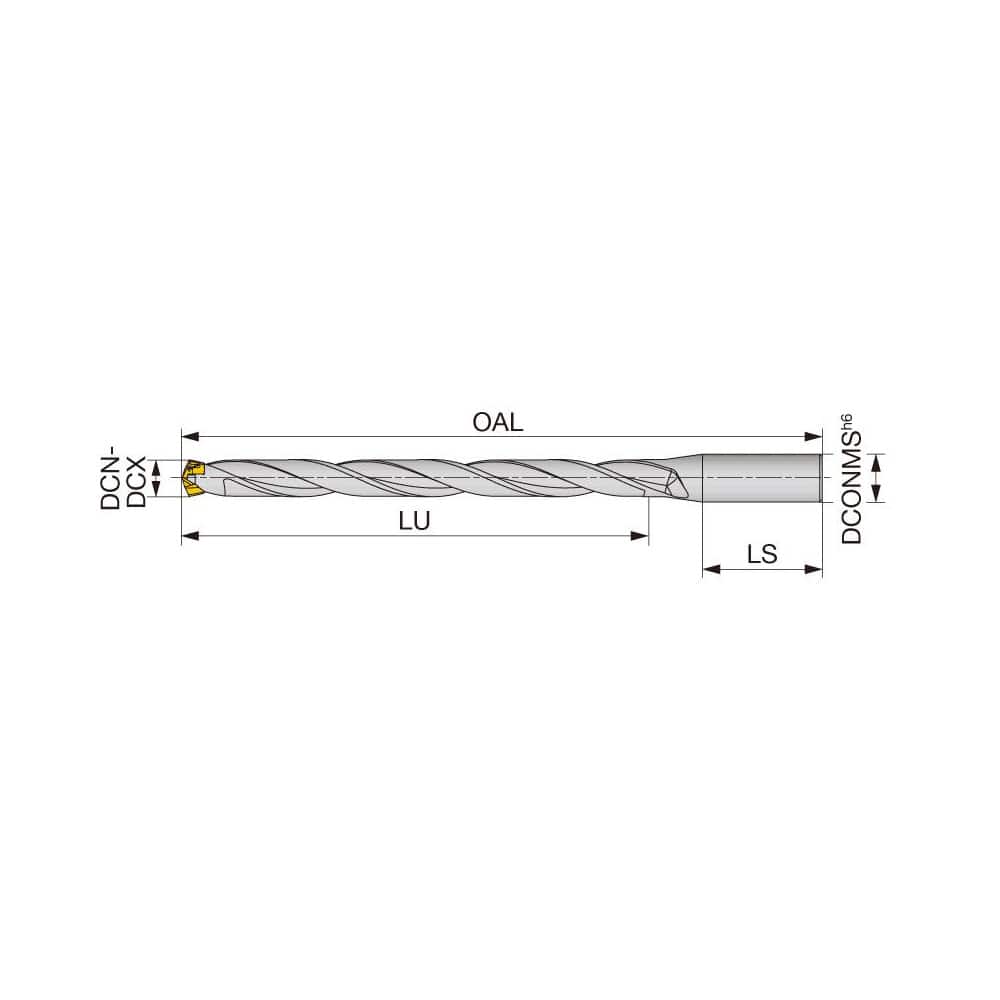

Replaceable Tip Drill: 8 to 8.4 mm Drill Dia, 98 mm Max Depth, 12 mm Straight-Cylindrical Shank Uses DMP Inserts, 156.25 mm OAL, Through Coolant
Item #: 18352013
Brand: Tungaloy
Model #: 6785547
Product Specifications
| Minimum Drill Diameter (mm) | 8.00 |
| Maximum Drill Diameter (mm) | 8.40 |
| Maximum Drill Depth (mm) | 98.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 080 |
| Overall Length (mm) | 156.25 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 45.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
