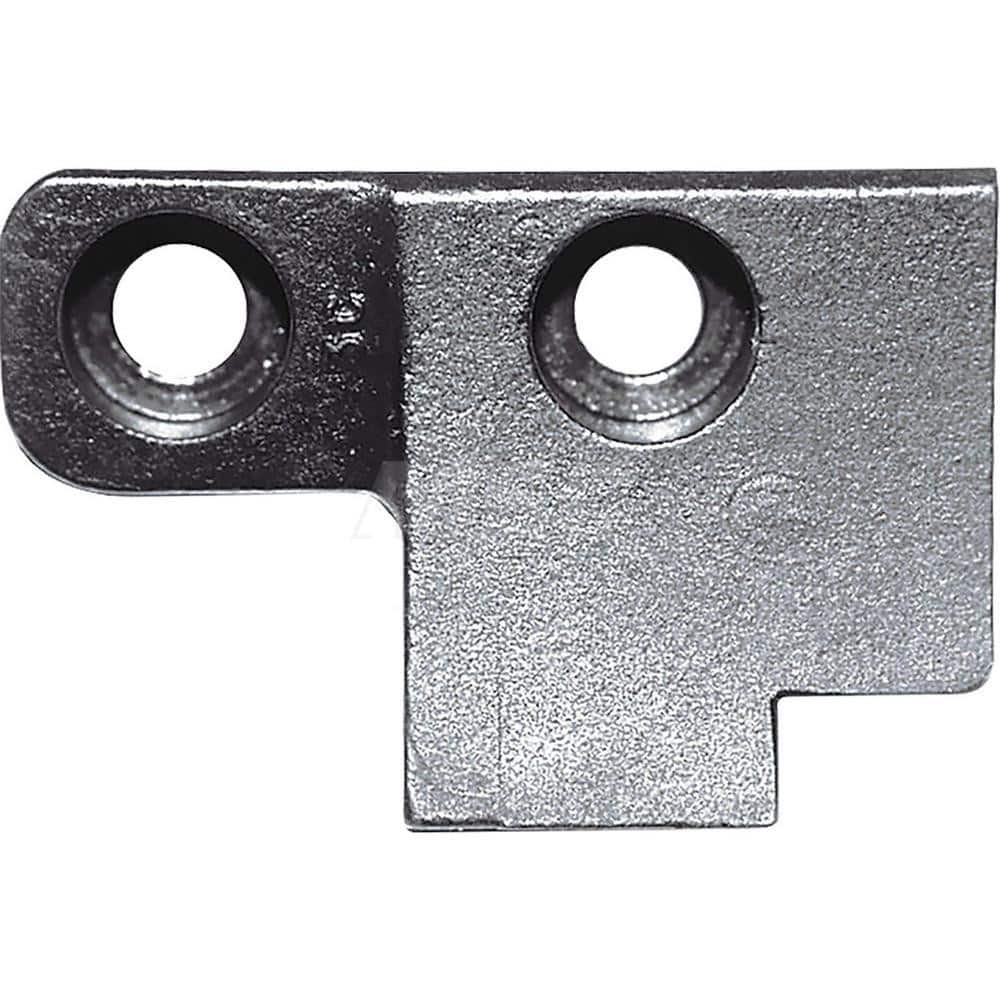

Indexable Grooving Blade: 15 mm High, Right Hand, 3.5 mm Min Width 0.26″ Max Depth of Cut
Item #: 18311605
Brand: Kyocera
Model #: THC05070
Product Specifications
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 3.50 |
| Blade Style | SF |
| Minimum Insert Width (mm) | 3.50 |
| Blade Height (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Insert Holding Method | Top Clamp |
| Maximum Insert Width (mm) | 4.50 |
| Series | GFV |
| Maximum Groove Width (mm) | 70.00 |
| Blade Overall Length (mm) | 35.00 |
| Manufacturers Catalog Number | SFR501C |
