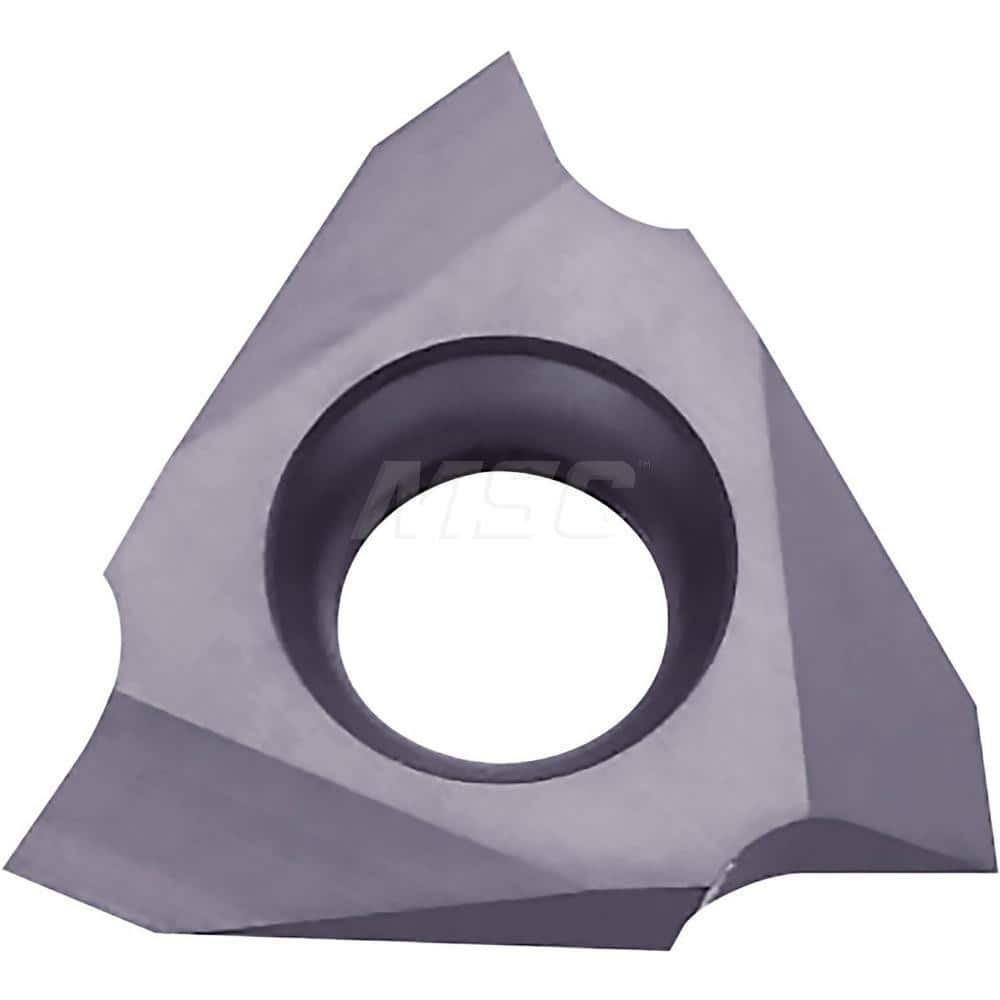

Threading Insert:43 Size, TT Style, PR1115 Grade, Carbide Grade, Carbide TiAlN Finish, 1.0-3.5 mm & 1.5-3.0 mm & 24-8 TPI & 16-10 TPI
Item #: 18303685
Brand: Kyocera
Model #: TJY19476
Product Specifications
| Insert Style | TT |
| Insert Material | Carbide |
| Manufacturer Grade | PR1115 |
| Thread Type | Internal & External |
| Material Grade | Carbide |
| Thread Standard | Partial Profile 60? |
| Insert Hand | Right Hand |
| Internal Pitch | 1.0-3.5 mm; 16-10 TPI; 1.5-3.0 mm; 24-8 TPI |
| External Pitch | 1.0-3.5 mm; 16-10 TPI; 1.5-3.0 mm; 24-8 TPI |
| Included Angle | 60 |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Iso Code | TT43R6001 |
| Width of Cutting Tip (Decimal Inch) | 0.1870 |
| Coating Classification | PVD |
| Insert Holding Method | Screw |
| Insert Size | 43 |
| Finish Coating | TiAlN |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.21 |
