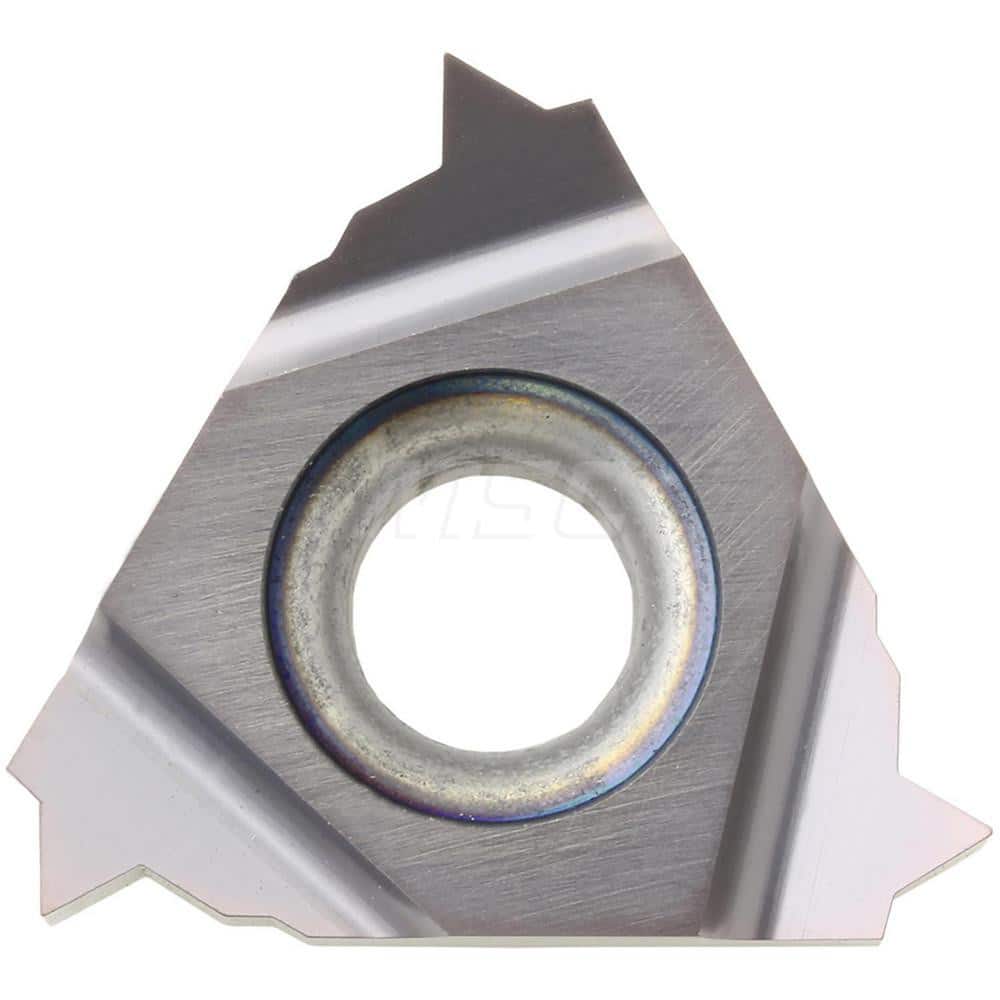

Laydown Threading Inserts; Insert Style: 16IR; Insert Size Code: 16; Insert Material: Solid Carbide; Manufacturer Grade: PR1115; Threads Per Inch: 24.00; Thread Type: Internal; Thread Standard: UN; Insert Hand: Right Hand; Included Angle: 60; Chipbreaker:
Item #: 18302927
Brand: Kyocera
Model #: TJY18905
Product Specifications
| Insert Style | 16IR |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1115 |
| Thread Type | Internal |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | TF |
| Series | 16IR |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0024 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.00 |
| Number of Teeth Per Side | 3 |
| Cutting Direction | Right Hand |
| Manufacturers Catalog Number | 16IR24UNTFPR1115 |
| Relief Angle | 0 |
| Teeth Per Inch | 24.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1450 |
| Coating/Finish | TiAlN |
