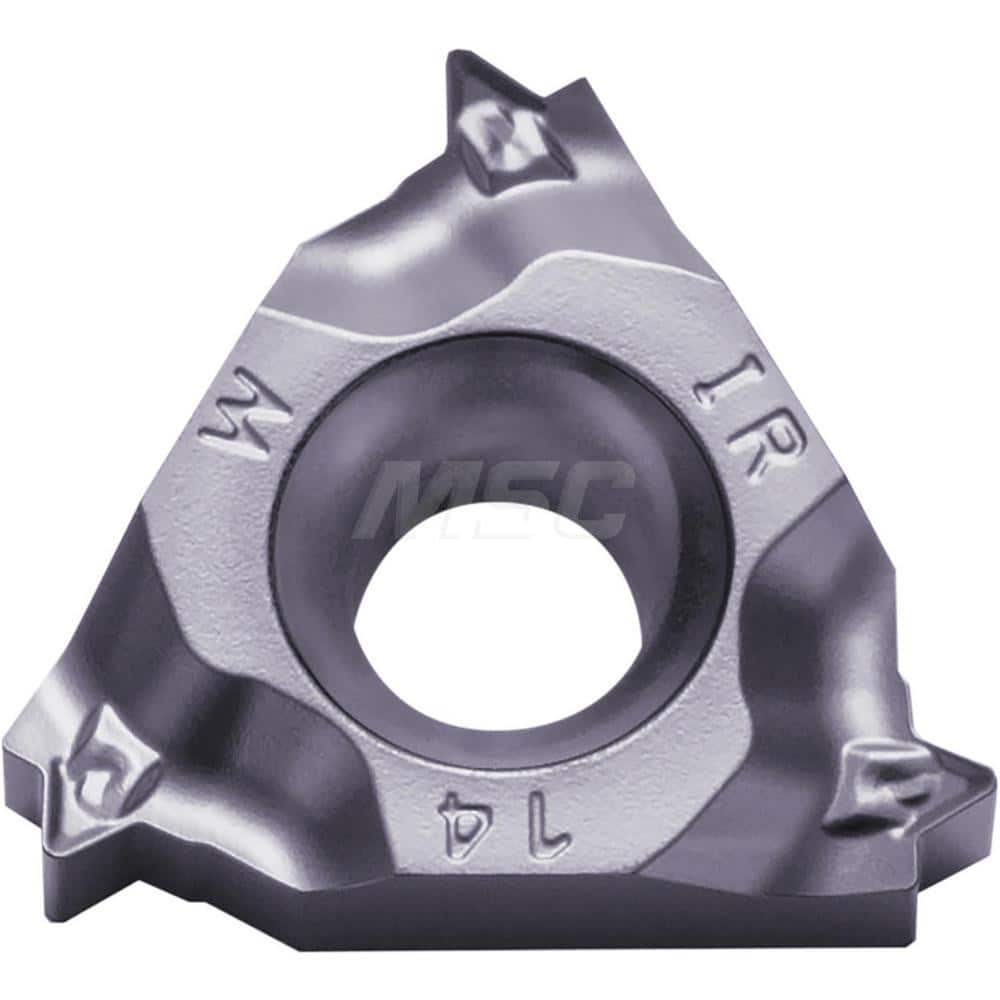

Laydown Threading Inserts; Insert Style: 16ER; Insert Size Code: 16; Insert Material: Solid Carbide; Manufacturer Grade: PR1535; Threads Per Inch: 14.00; Thread Type: External; Thread Standard: Parallel Pipe; Whitworth; Insert Hand: Right Hand; Included A
Item #: 18302562
Brand: Kyocera
Model #: TLC19710
Product Specifications
| Insert Style | 16ER |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Thread Type | External |
| Thread Standard | Parallel Pipe; Whitworth |
| Insert Hand | Right Hand |
| Included Angle | 55 |
| Chipbreaker | TQ |
| Series | 16ER |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0091 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.00 |
| Number of Teeth Per Side | 3 |
| Cutting Direction | Right Hand |
| Manufacturers Catalog Number | 16ER14WTQPR1535 |
| Relief Angle | 0 |
| Teeth Per Inch | 14.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1450 |
| Coating/Finish | TiAlN |
