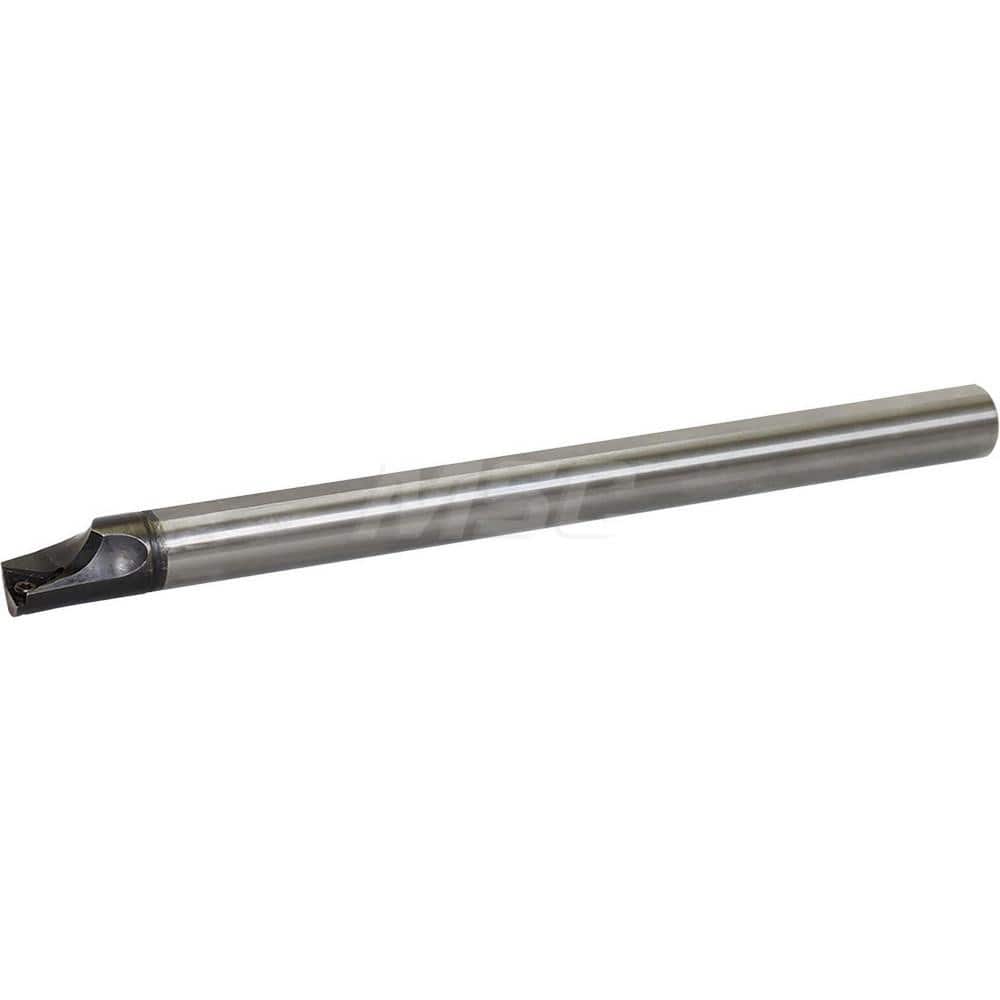

Indexable Boring Bar: E08LSTLPR0910AN, 10.00 mm Min Bore, 8.00 mm Shank Dia, N/A Steel & Solid Carbide Screw, Uses TPGT1815 ™, TPMT1815 ™, TPMX1815 ™, TPEH1815 ™, TPGH1815 ™, TPGB1815 ™ & TPMH1815 ™ Inserts
Item #: 18298935
Brand: Kyocera
Model #: THC14570
Product Specifications
| Minimum Bore Diameter (mm) | 10.00 |
| Maximum Bore Depth (mm) | 56.00 |
| Toolholder Style | E...STLPN |
| Tool Material | Steel; Solid Carbide |
| Insert Compatibility | TPGT1815?; TPEH1815?; TPGH1815?; TPMH1815?; TPMX1815?; TPGB1815?; TPMT1815? |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 140.00 |
| Insert Holding Method | Screw |
| Series | DYNB |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 5.00 |
| Multi-Use Application | Internal Facing; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Coolant Hole Diameter (mm) | 3.00 |
| Manufacturers Catalog Number | E08LSTLPR0910AN |
| Manufacturer's Part Number | E08LSTLPR0910AN |
| Coolant Through | Yes |
