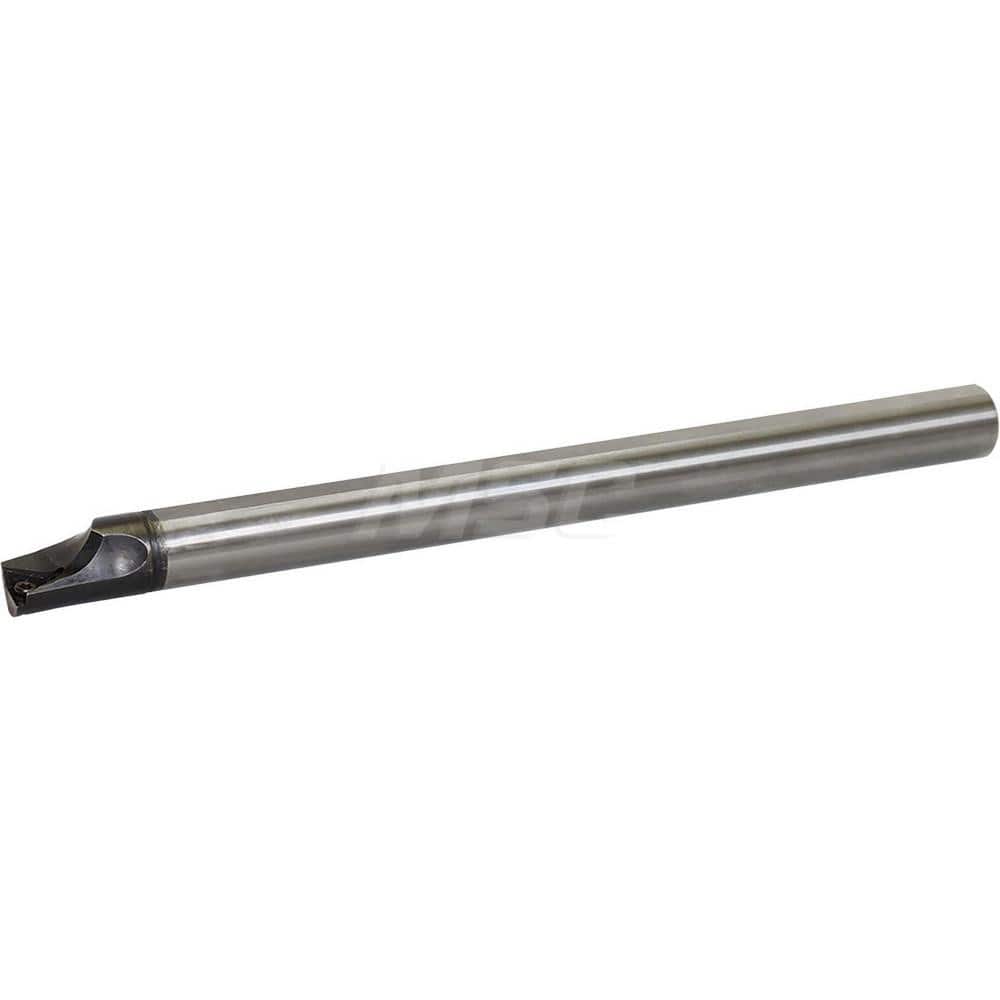

Indexable Boring Bar: E08LSTLPR0810AN, 10.00 mm Min Bore, 8.00 mm Shank Dia, N/A Steel & Solid Carbide Screw, Uses TPGT1515 ™, TPGH1515 ™, TPET1515 ™, TPGB1515 ™ & TPMH1515 ™ Inserts
Item #: 18298927
Brand: Kyocera
Model #: THC14568
Product Specifications
| Minimum Bore Diameter (mm) | 10.00 |
| Maximum Bore Depth (mm) | 56.00 |
| Toolholder Style | E...STLPN |
| Tool Material | Steel; Solid Carbide |
| Insert Compatibility | TPET1515?; TPGH1515?; TPGT1515?; TPMH1515?; TPGB1515? |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 140.00 |
| Insert Holding Method | Screw |
| Series | DYNB |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 5.00 |
| Multi-Use Application | Internal Facing; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Coolant Hole Diameter (mm) | 3.00 |
| Manufacturers Catalog Number | E08LSTLPR0810AN |
| Manufacturer's Part Number | E08LSTLPR0810AN |
| Coolant Through | Yes |
