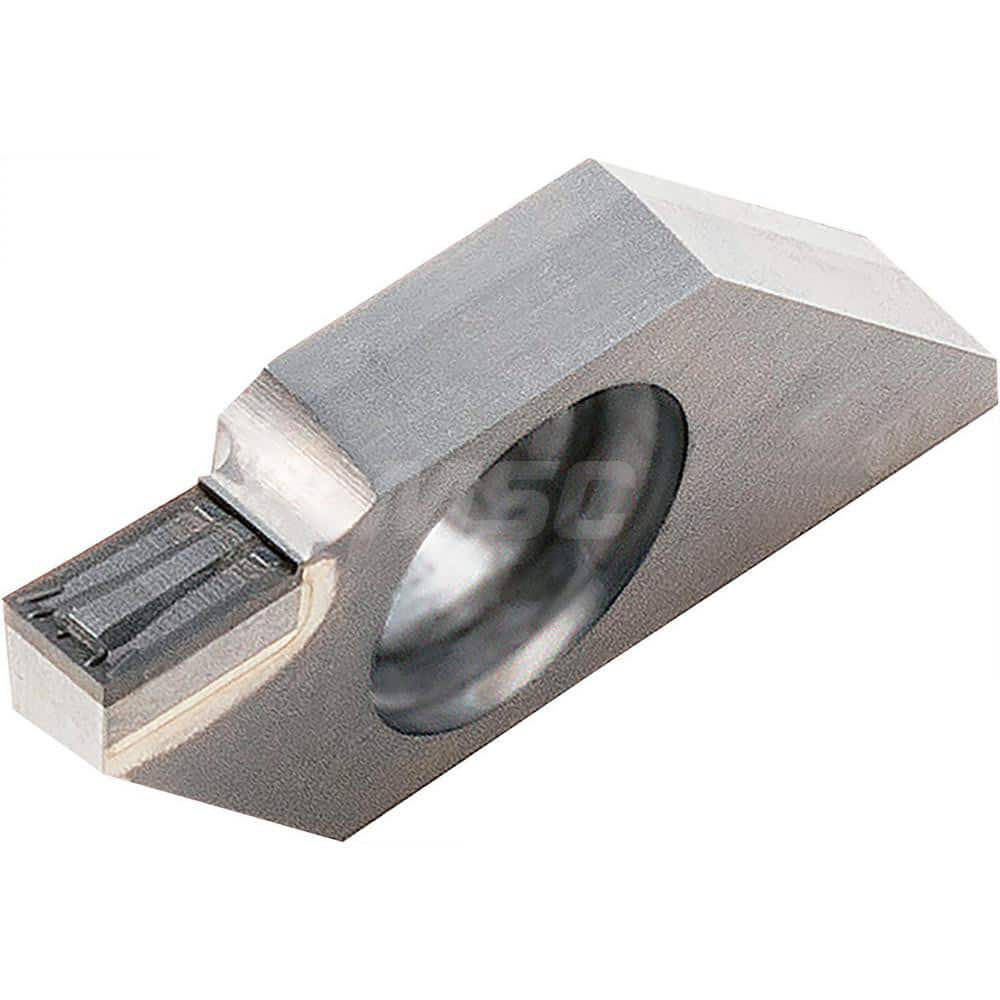

Grooving Insert: TKF12 KPD001, Polycrystalline Diamond Right Hand, 2.5 mm Cutting Width, 4.8 mm Max Depth, Series KTKF
Item #: 18295345
Brand: Kyocera
Model #: TBR40011
Product Specifications
| Insert Style | TKF |
| Insert Size | 12 |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD001 |
| Cutting Width (mm) | 2.50 |
| Maximum Depth of Cut (mm) | 4.80 |
| Insert Holding Method | Screw |
| Cutting Height (mm) | 8.70 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.10 |
| Maximum Depth Of Cut Range (mm) | 4.00 to 5.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Traversing; Small Parts Machining |
| Series | KTKF |
| Iso Code | TKF12R250-AGT |
| Minimum Corner Radius (Decimal Inch) | -0.0020 |
| Manufacturers Catalog Number | TKF12R250AGTKPD001 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 2.50 |
| Number Of Cutting Edges | 1 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
