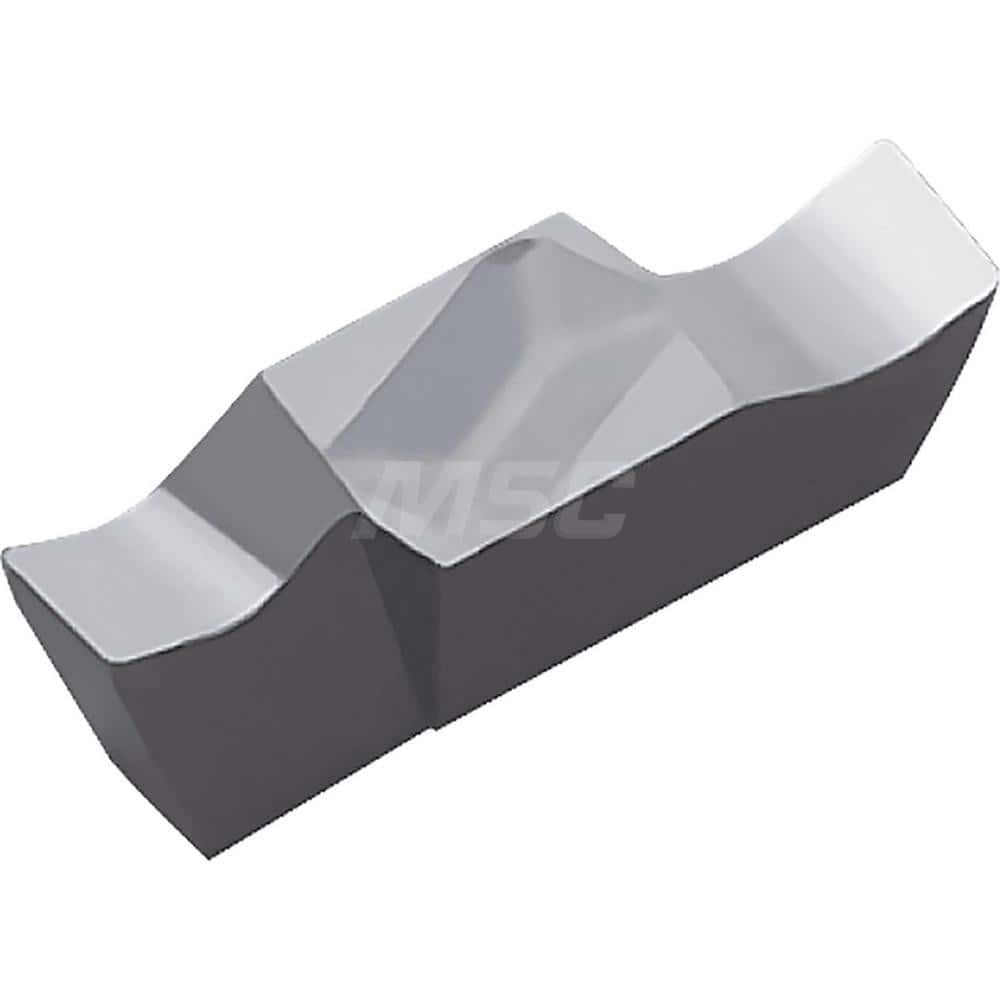

Grooving Insert: GV125A KW10, Solid Carbide Co & WC Finish, Right Hand, 1.25 mm Cutting Width, 2.3 mm Max Depth, Series GVIG
Item #: 18294140
Brand: Kyocera
Model #: TWE01780
Product Specifications
| Insert Style | GV |
| Insert Size | 125 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Cutting Width (mm) | 1.25 |
| Maximum Depth of Cut (mm) | 2.30 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 5.00 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Internal Grooving; Small Parts Machining |
| Series | GVIG |
| Iso Code | GVR125A |
| Manufacturers Catalog Number | GVR125AKW10 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | A |
| Full Radius | No |
| Overall Width | 1.25 |
| Coating/Finish | Co; WC |
| Number Of Cutting Edges | 2 |
