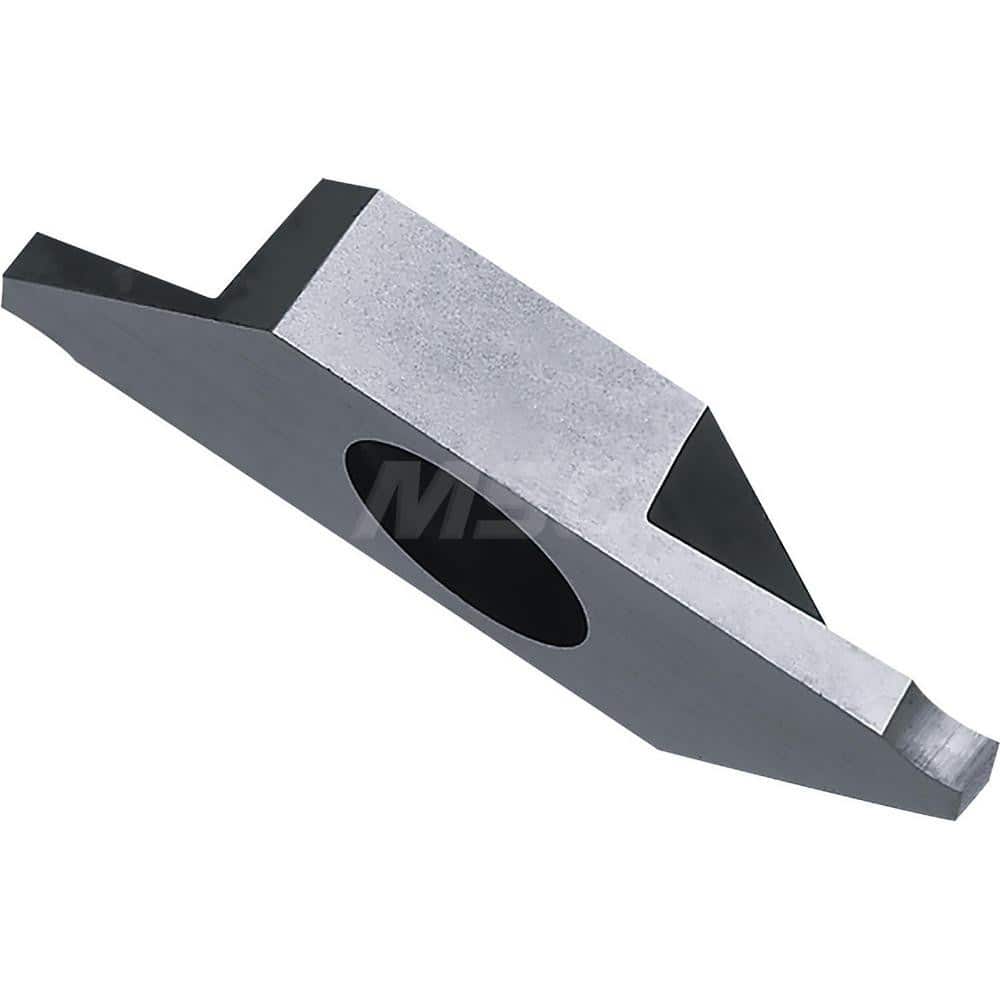

Cut-Off Inserts; Insert Style: TKF; Insert Size Code: 16; Insert Material: Solid Carbide; Manufacturer Grade: PR1725; Cutting Width (mm): 1.50; Insert Holding Method: Screw; Lead Angle Direction: Neutral; Insert Hand: Left Hand; Lead Angle: 0; Relief Angl
Item #: 18293662
Brand: Kyocera
Model #: TLM40131
Product Specifications
| Insert Style | TKF |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1725 |
| Cutting Width (mm) | 1.50 |
| Insert Holding Method | Screw |
| Lead Angle Direction | Neutral |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Relief Angle | 0.00 |
| Corner Radius (mm) | 0.08 |
| Chipbreaker | T |
| Series | KTKF |
| Coating Process | PVD |
| Manufacturers Catalog Number | TKF16L150TPR1725 |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Height (Decimal Inch) | 0.3740 |
| Coating/Finish | Megacoat Nano Plus |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
