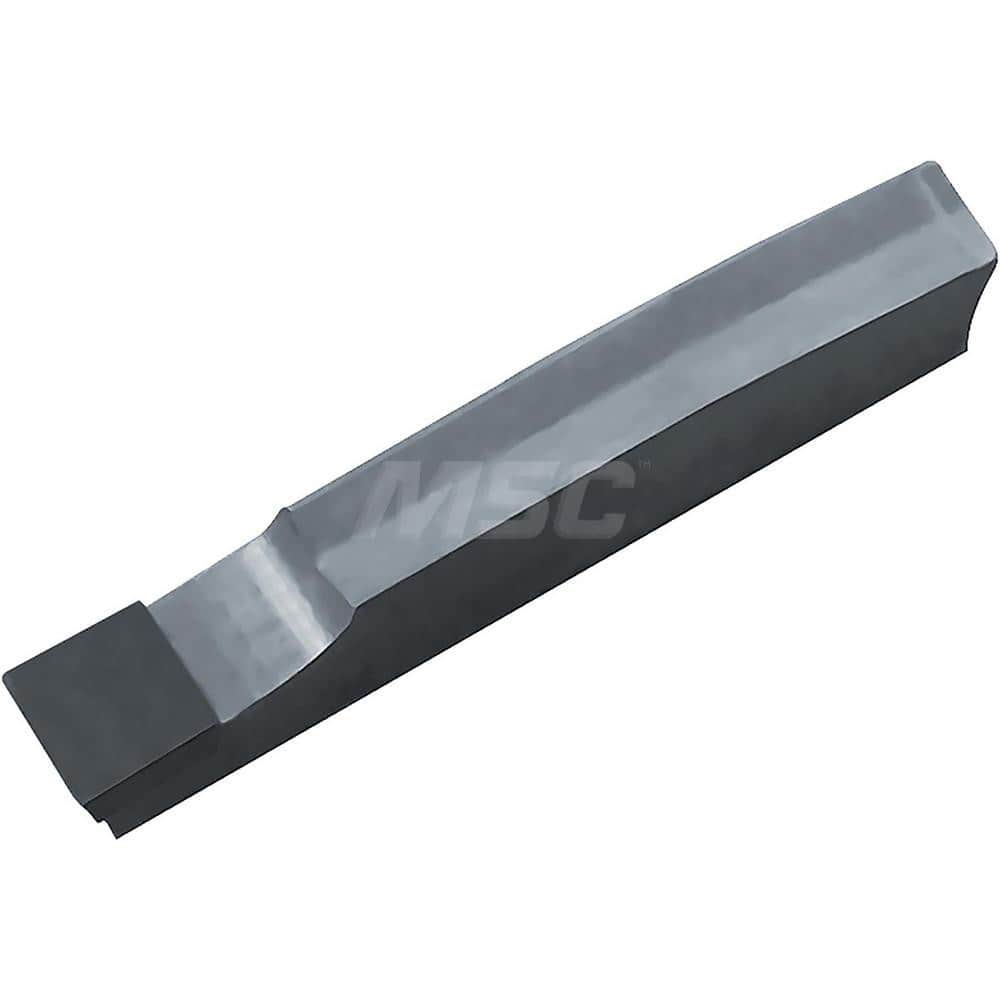

Grooving Insert: GDGS5020 KBN570, Cubic Boron Nitride Neutral, 5 mm Cutting Width, 25 mm Max Depth, Series KGD
Item #: 18293274
Brand: Kyocera
Model #: TBT10743
Product Specifications
| Insert Style | GDGS |
| Insert Size | 5020 |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN570 |
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | KGD |
| Iso Code | GDGS5020N040NBKBN570 |
| Manufacturers Catalog Number | GDGS5020N040NBKBN570 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 5.00 |
| Number Of Cutting Edges | 1 |
