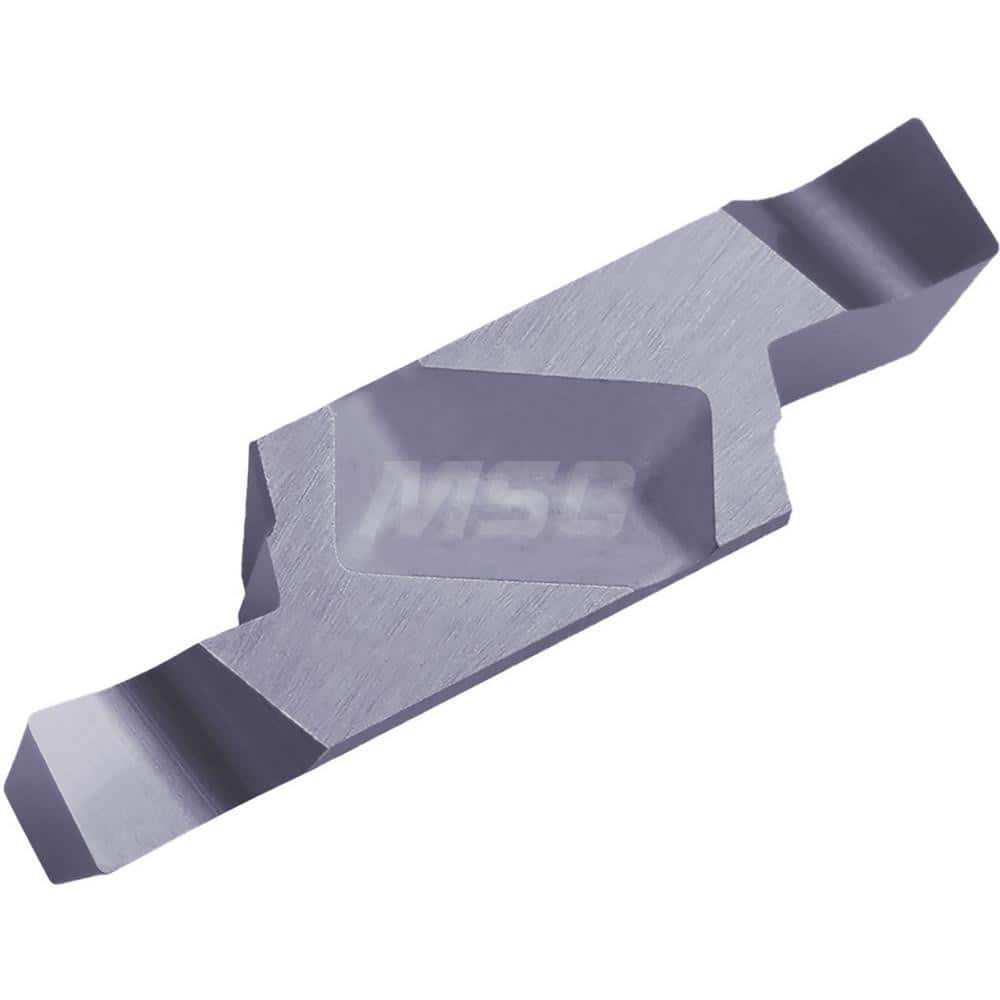

Grooving Insert: GVF400020B PR1225, Solid Carbide Megacoat, Right Hand, 4 mm Cutting Width, 5.3 mm Max Depth, Series GFV
Item #: 18293209
Brand: Kyocera
Model #: TKE15832
Product Specifications
| Insert Style | GVF |
| Insert Size | 400020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1225 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 5.30 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 5.00 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Face Grooving |
| Series | GFV |
| Coating Process | PVD |
| Iso Code | GVFR400020B |
| Manufacturers Catalog Number | GVFR400020BPR1225 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | B |
| Full Radius | No |
| Overall Width | 4.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
