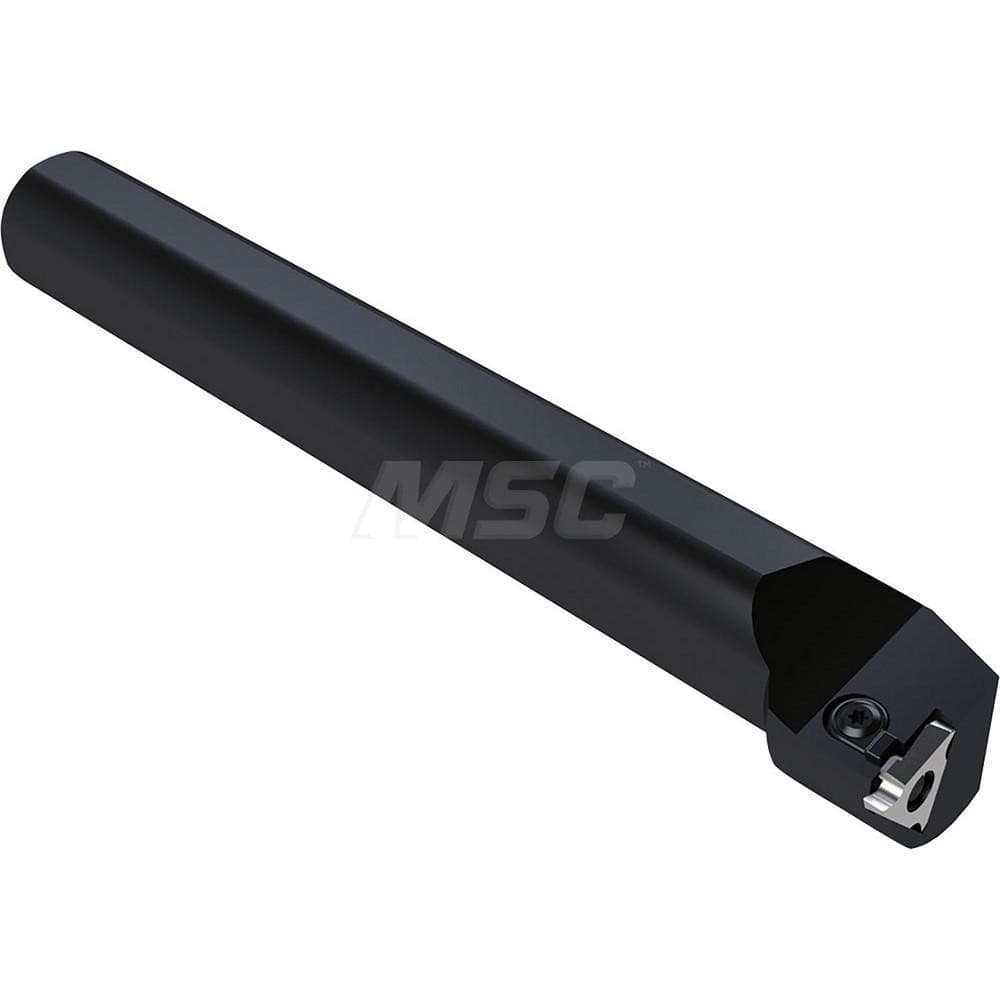

Indexable Grooving Toolholder: KIGBAL163, Internal Left Hand, 0.0984″ Max Depth, 1″ Shank Width, No
Item #: 18292250
Brand: Kyocera
Model #: 8805059
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Minimum Groove Width (mm) | 0.33 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | GBA |
| Insert Holding Method | Top Clamp |
| Insert Compatibility | GBA32R? |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Series | GBA |
| Overall Length (Decimal Inch) | 9.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Large Diameter Shallow Grooving |
| Vibration Dampening | No |
| Maximum Bore Depth (Decimal Inch) | 35.0500 |
| Manufacturers Catalog Number | KIGBAL163 |
| Toolholder Material | Steel |
| Coolant Through | No |
