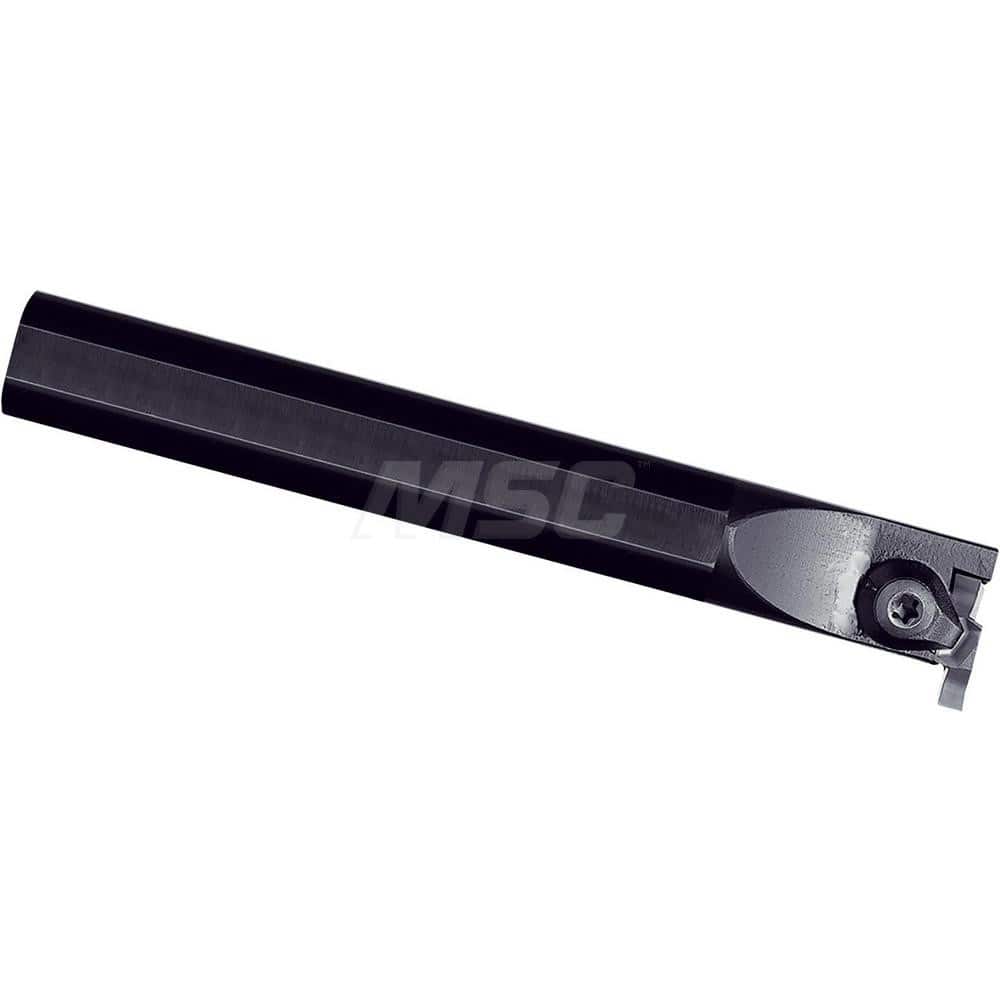

Indexable Grooving Toolholder: GIVL20161BE, Internal Left Hand, No
Item #: 18291344
Brand: Kyocera
Model #: THC04768
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 3.20 |
| Minimum Groove Width (mm) | 1.45 |
| Maximum Groove Width (mm) | 1.45 |
| Toolholder Style | GVIG |
| Insert Holding Method | Top Clamp |
| Insert Compatibility | GVL?BR; GVL?B |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Series | GVIG |
| Overall Length (mm) | 180.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Internal Grooving; Small Parts Machining |
| Vibration Dampening | No |
| Maximum Bore Depth (Decimal Inch) | 20.0000 |
| Manufacturers Catalog Number | GIVL20161BE |
| Toolholder Material | Steel |
| Coolant Through | No |
