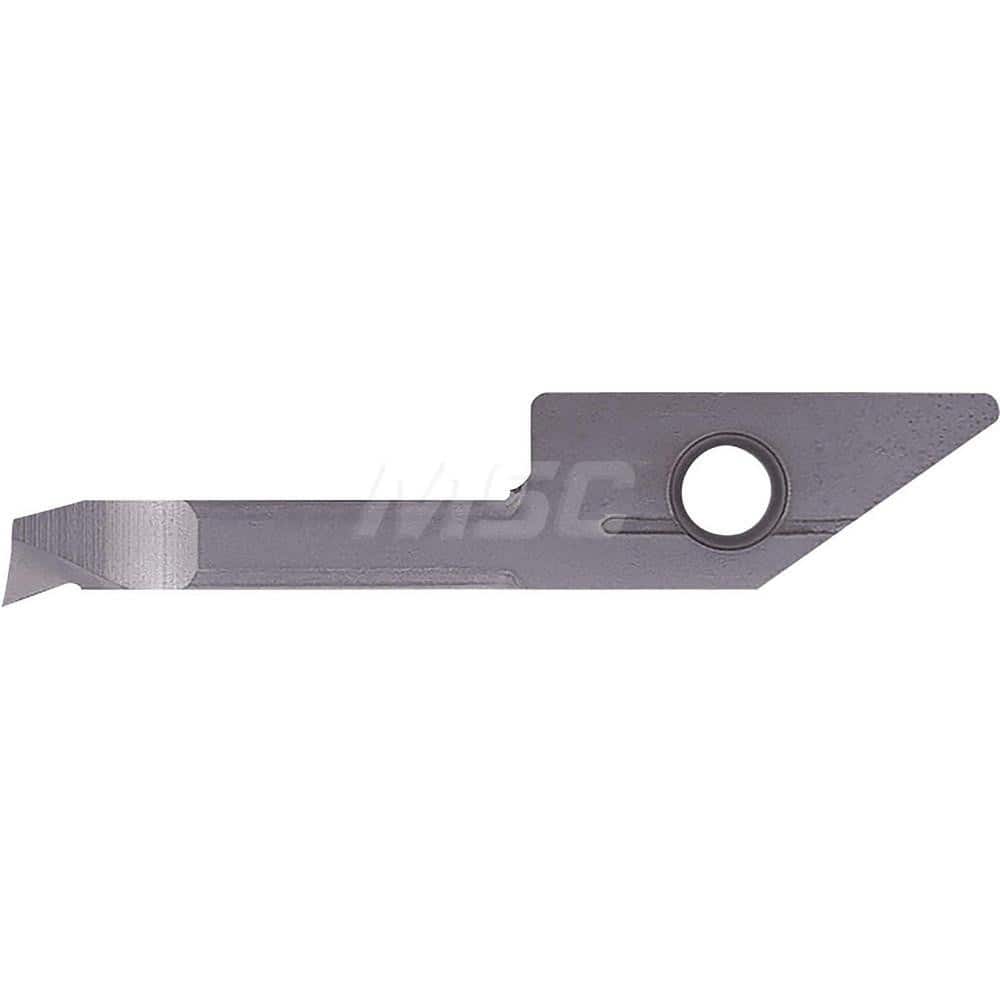

Boring Bar: 6 mm Min Bore, 3 mm Max Depth, Right Hand Cut, Carbide 3.90 mm Shank Dia, 49.80 mm OAL, 0.03 mm Corner Radius
Item #: 18289702
Brand: Kyocera
Model #: TKT09274
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (mm) | 6.00 |
| Material | Carbide |
| Maximum Bore Depth (mm) | 30.00 |
| Shank Diameter (mm) | 3.90 |
| Overall Length (mm) | 49.80 |
| Finish Coating | TiCN |
| Corner Radius (mm) | 0.03 |
| Bar End Angle | 30 |
| Manufacturer Grade | PR930 |
| Series | SWIQ |
| Coating Process | PVD |
| Manufacturers Catalog Number | VNBR0630003PR930 |
| Primary Workpiece Material | P |
