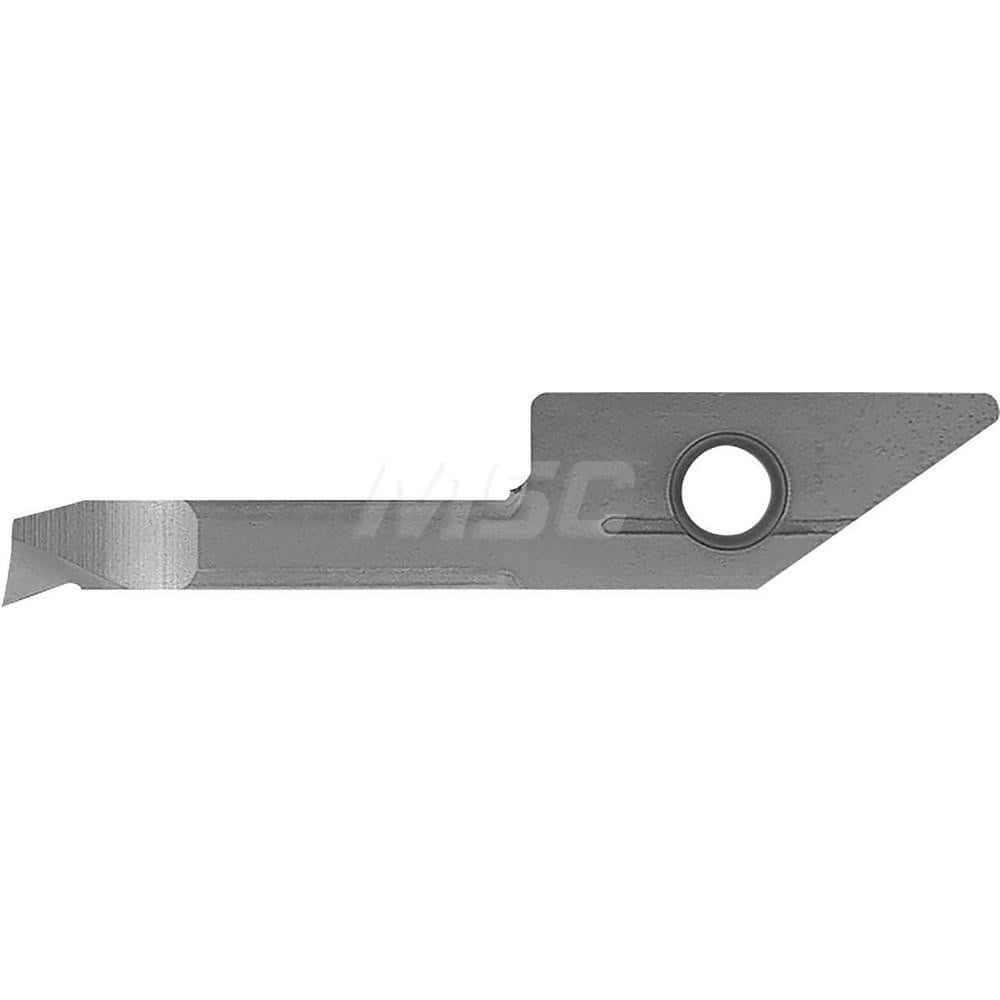

Boring Bar: 6 mm Min Bore, 2 mm Max Depth, Right Hand Cut, Carbide 3.90 mm Shank Dia, 39.80 mm OAL, 0.03 mm Corner Radius
Item #: 18289686
Brand: Kyocera
Model #: TWE07022
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (mm) | 6.00 |
| Material | Carbide |
| Maximum Bore Depth (mm) | 20.00 |
| Shank Diameter (mm) | 3.90 |
| Overall Length (mm) | 39.80 |
| Finish Coating | Uncoated |
| Corner Radius (mm) | 0.03 |
| Bar End Angle | 30 |
| Manufacturer Grade | KW10 |
| Series | SWIQ |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | VNBR0620003KW10 |
| Primary Workpiece Material | N |
