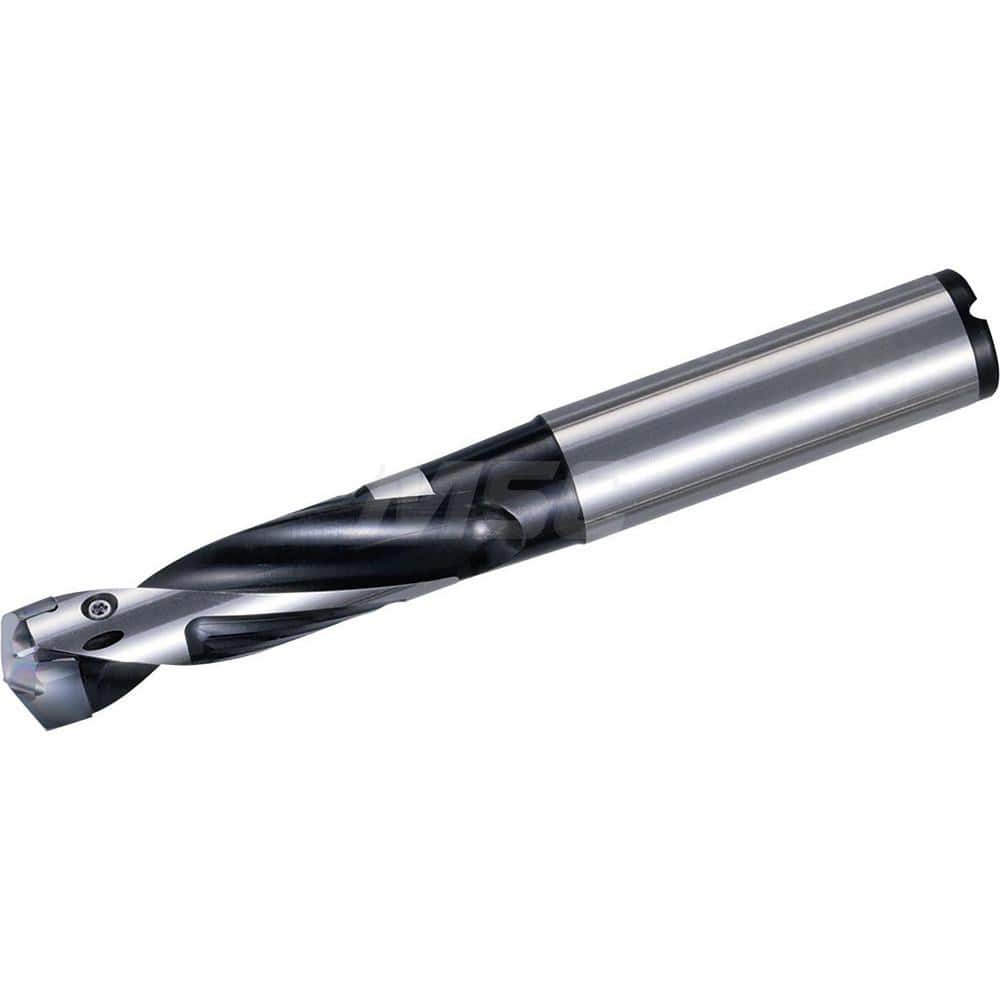

Replaceable Tip Drill: 22 to 22.99 mm Drill Dia, 69 mm Max Depth, 25 mm Straight-Cylindrical Shank Seat Size 22, 158 mm OAL, Through Coolant
Item #: 18260562
Brand: Kyocera
Model #: THD08220
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 22.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9051 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 69.00 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 22 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Overall Length (mm) | 158.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 102.00 |
| Shank Length (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 33 |
