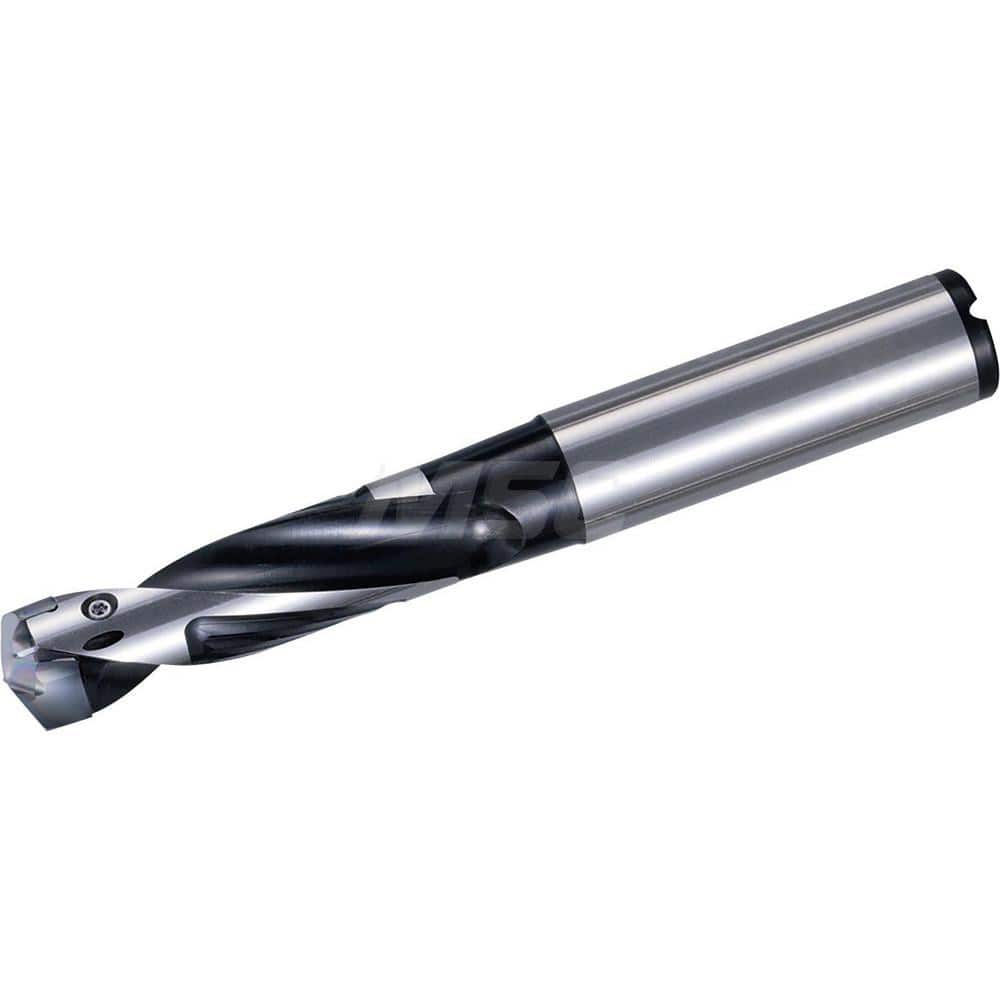

Replaceable Tip Drill: 13.5 to 13.99 mm Drill Dia, 42 mm Max Depth, 14 mm Straight-Cylindrical Shank Seat Size 13.5, 107 mm OAL, Through Coolant
Item #: 18260117
Brand: Kyocera
Model #: THD08135
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5315 |
| Minimum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 42.00 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 13.5 |
| Shank Diameter (mm) | 14.00 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Overall Length (mm) | 107.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 62.00 |
| Shank Length (mm) | 45.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 45 |
