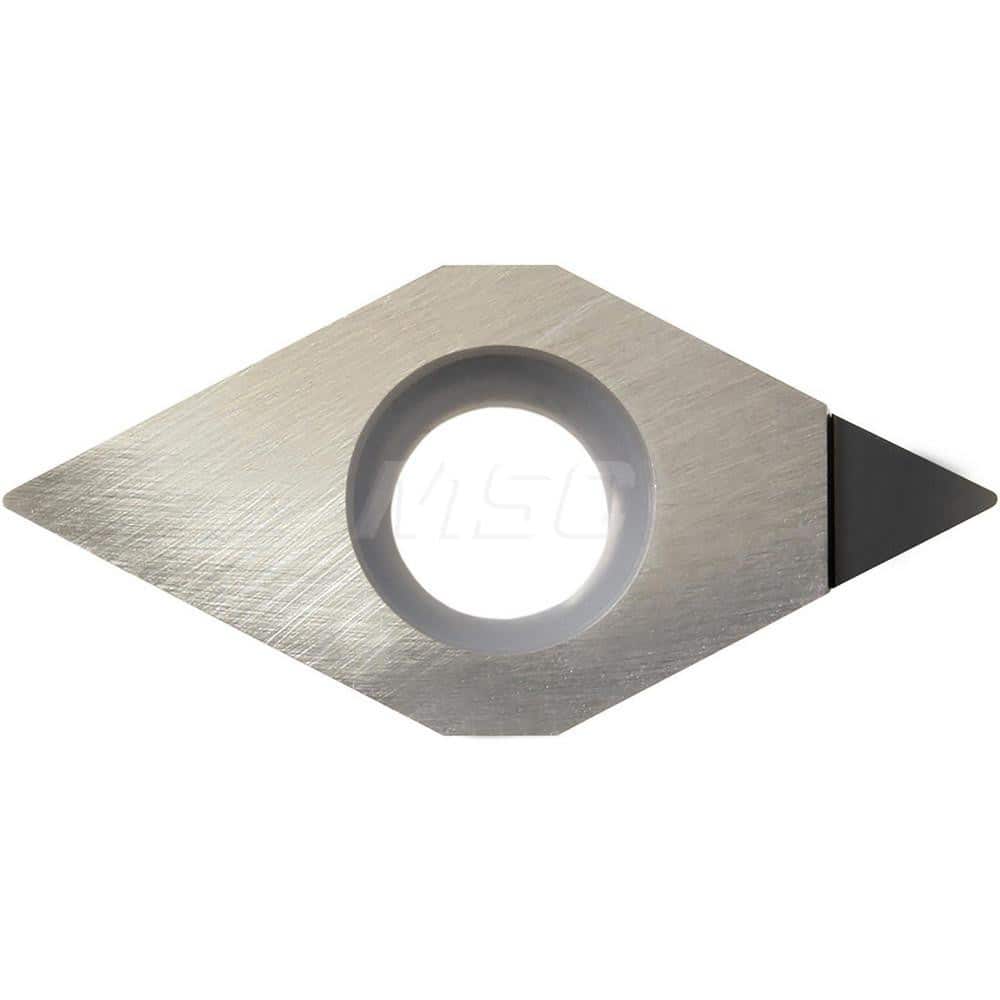

Kyocera DCMT 2151 KPD001 Grade PCD, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy
Item #: 18256115
Brand: Kyocera
Model #: TBR02003
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 2151 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD001 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 1/4 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | S; N |
| Iso Code | DCMT070204 |
| Manufacturers Catalog Number | DCMT2151KPD001 |
| Chip Breaker | T |
| Style | DCMT |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Back Boring; Copying |
