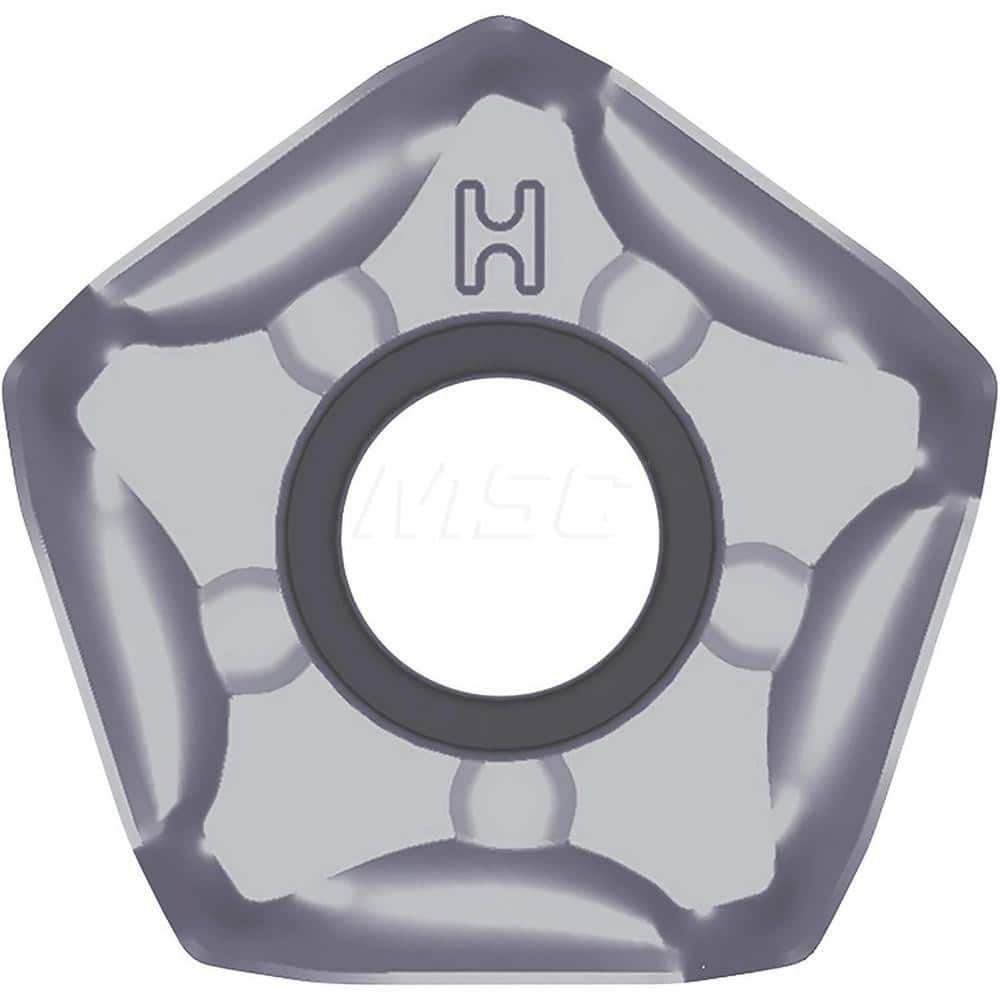

Kyocera PNMU 0905XNERGH PR015S Grade PVD Carbide, Indexable Milling Insert, Pentagon, Rake Angle, Milling Insert for Roughing in (H) Hardened Materials
Item #: 18255893
Brand: Kyocera
Model #: TLJ59003
Product Specifications
| Insert Style | PNMU |
| Insert Size | 0905 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR015S |
| Inscribed Circle (mm) | 14.60 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.70 |
| Maximum Depth of Cut (mm) | 9.00 |
| Rake | Negative |
| Ansi Code | PNMU0905XNERGHPR015S |
| Iso Code | PNMU0905XNER-GH |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNMU0905XNERGHPR015S |
| Cutter Series Compatibility | MFPN |
| Chip Breaker | GH |
| Cutting Direction | Right Hand |
| Shape | Pentagon |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.56 |
| Coating/Finish | Megacoat Hard |
| Length | 14.60 |
| Width (Mm - 2 Decimals) | 14.60 |
