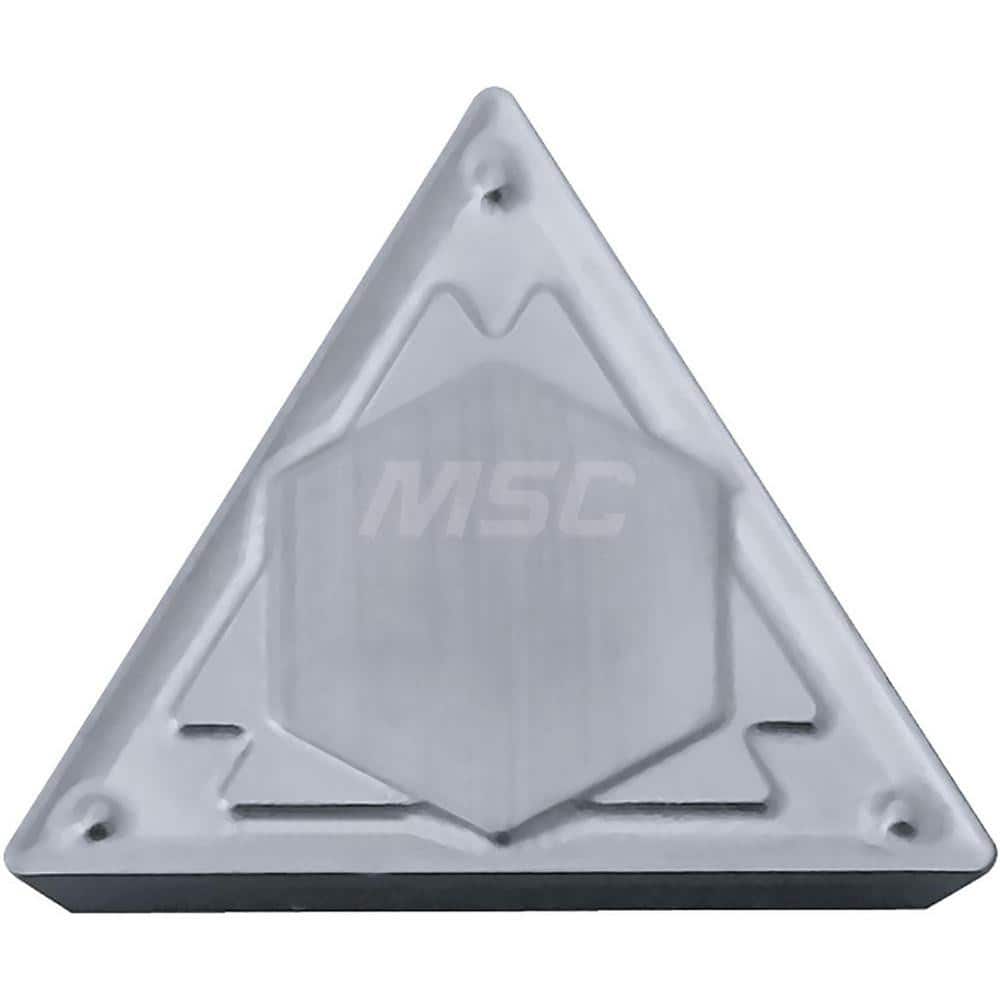

Kyocera TPMR 321HQ TN610 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel
Item #: 18255620
Brand: Kyocera
Model #: TSS07263
Product Specifications
| Insert Style | TPMR |
| Insert Shape Code | T |
| Insert Size Code | 321 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | TN610 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Primary Workpiece Material | P |
| Iso Code | TPMR160304HQ |
| Manufacturers Catalog Number | TPMR321HQTN610 |
| Chip Breaker | HQ |
| Style | TPMR |
| Full Radius | No |
| Coating/Finish | TiCN |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
