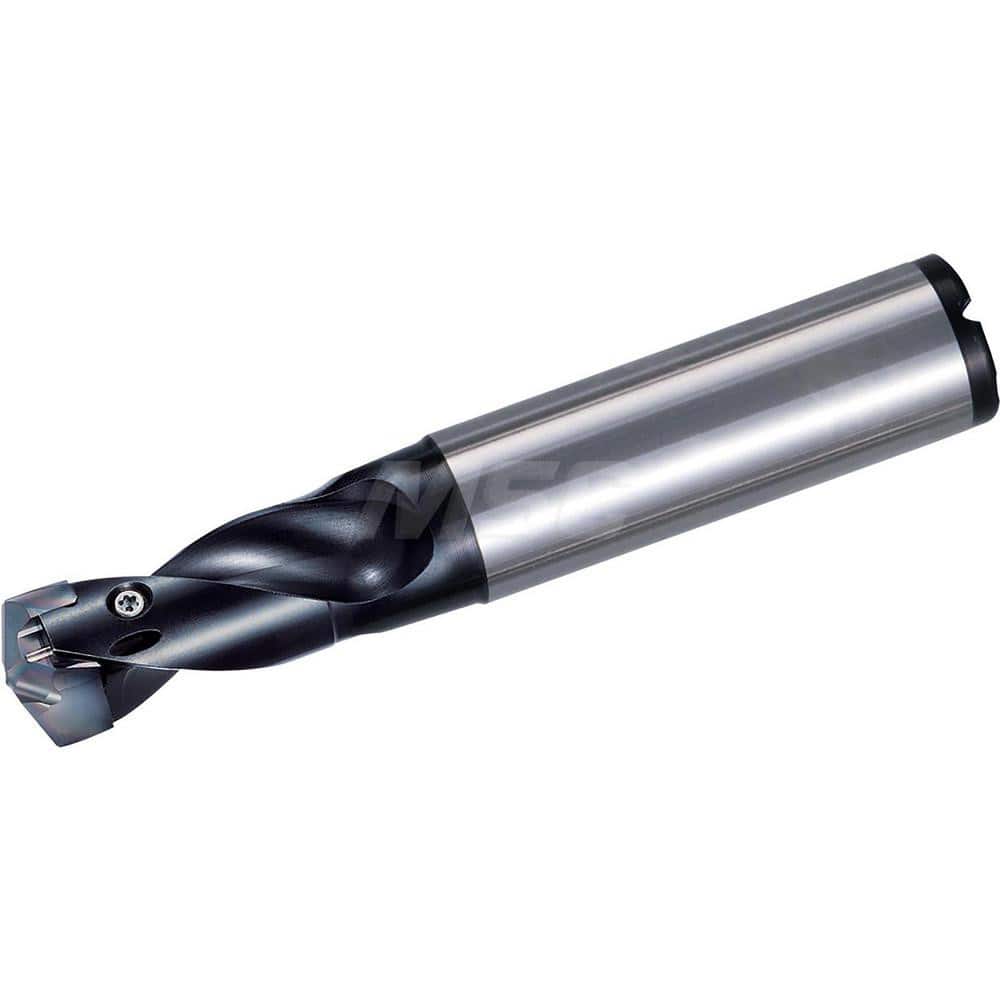

Replaceable Tip Drill: 9 to 9.49 mm Drill Dia, 14.3 mm Max Depth, 10 mm Straight-Cylindrical Shank Seat Size 9, 68.7 mm OAL, Through Coolant
Item #: 18254045
Brand: Kyocera
Model #: THD11492
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.3543 |
| Minimum Drill Diameter (mm) | 9.00 |
| Maximum Drill Diameter (mm) | 9.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.3736 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 14.30 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 9 |
| Shank Diameter (mm) | 10.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Overall Length (mm) | 68.70 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 28.70 |
| Shank Length (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 103 |
