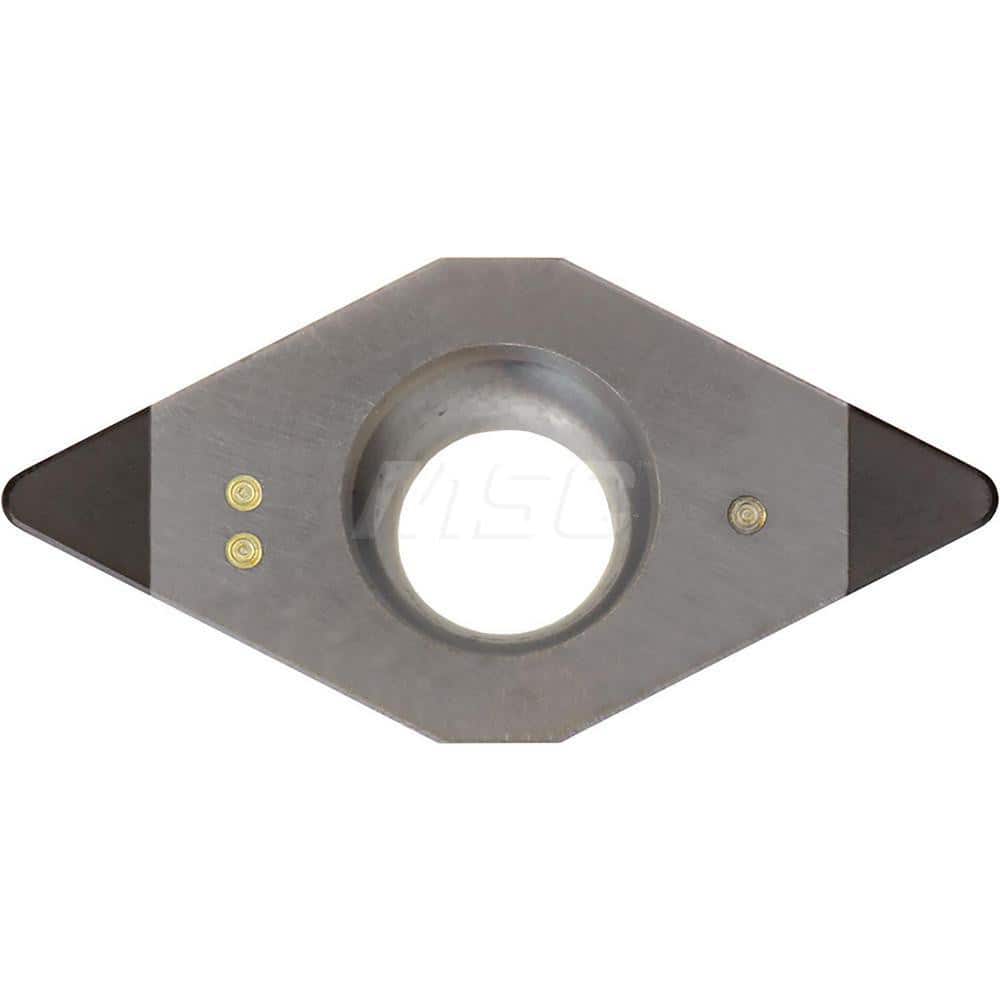

Kyocera DCMW 3251T00315ME KBN70M Grade CBN, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing-Medium in Powdered Steel
Item #: 18253138
Brand: Kyocera
Model #: TBJ02116
Product Specifications
| Insert Style | DCMW |
| Insert Shape Code | D |
| Insert Size Code | 3251 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN70M |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | P; M |
| Iso Code | DCMW11T304T00815ME |
| Manufacturers Catalog Number | DCMW3251T00315MEKBN70M |
| Chip Breaker | W |
| Style | DCMW |
| Full Radius | No |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Back Boring; Copying |
