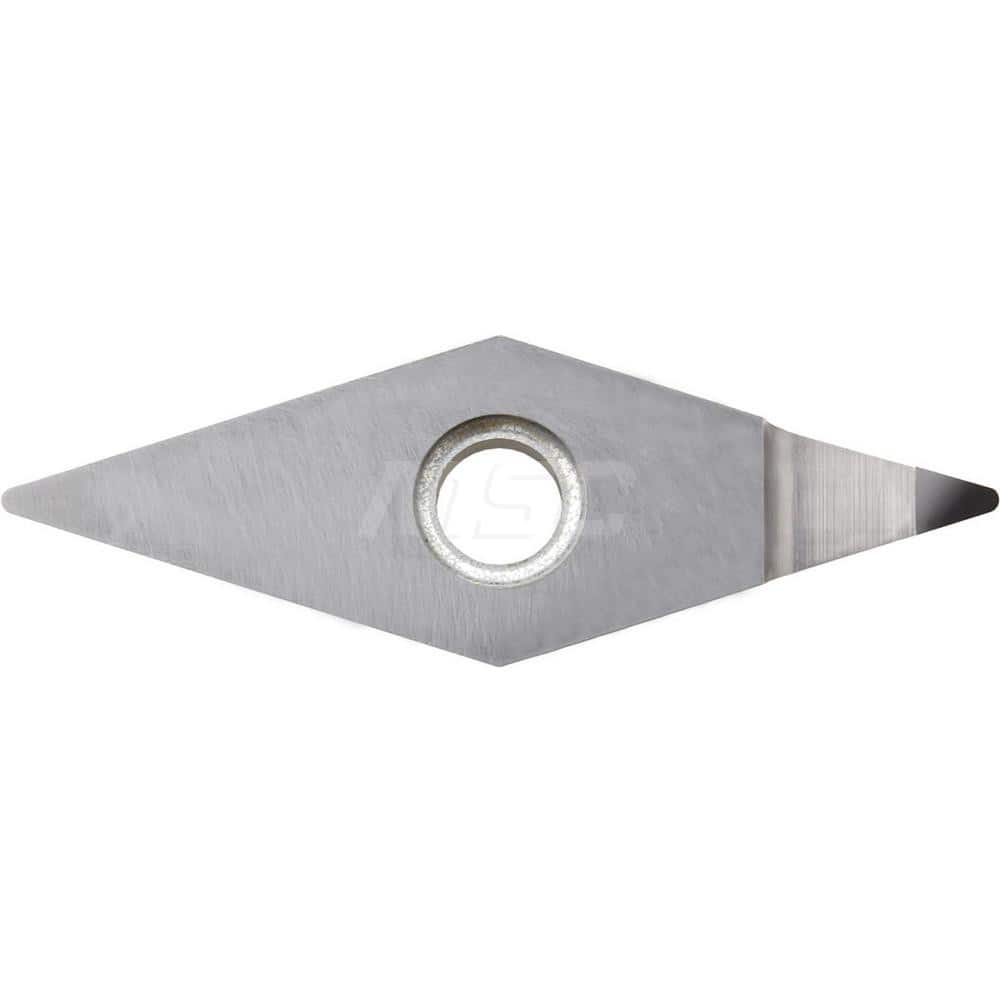

Kyocera VNMM 332MSE KPD010 Grade PCD, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy
Item #: 18251918
Brand: Kyocera
Model #: TBE02442
Product Specifications
| Insert Style | VNMM |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | KPD010 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | S; N |
| Iso Code | VNMM160408M-SE |
| Manufacturers Catalog Number | VNMM332MSEKPD010 |
| Chip Breaker | M |
| Style | VNMM |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
