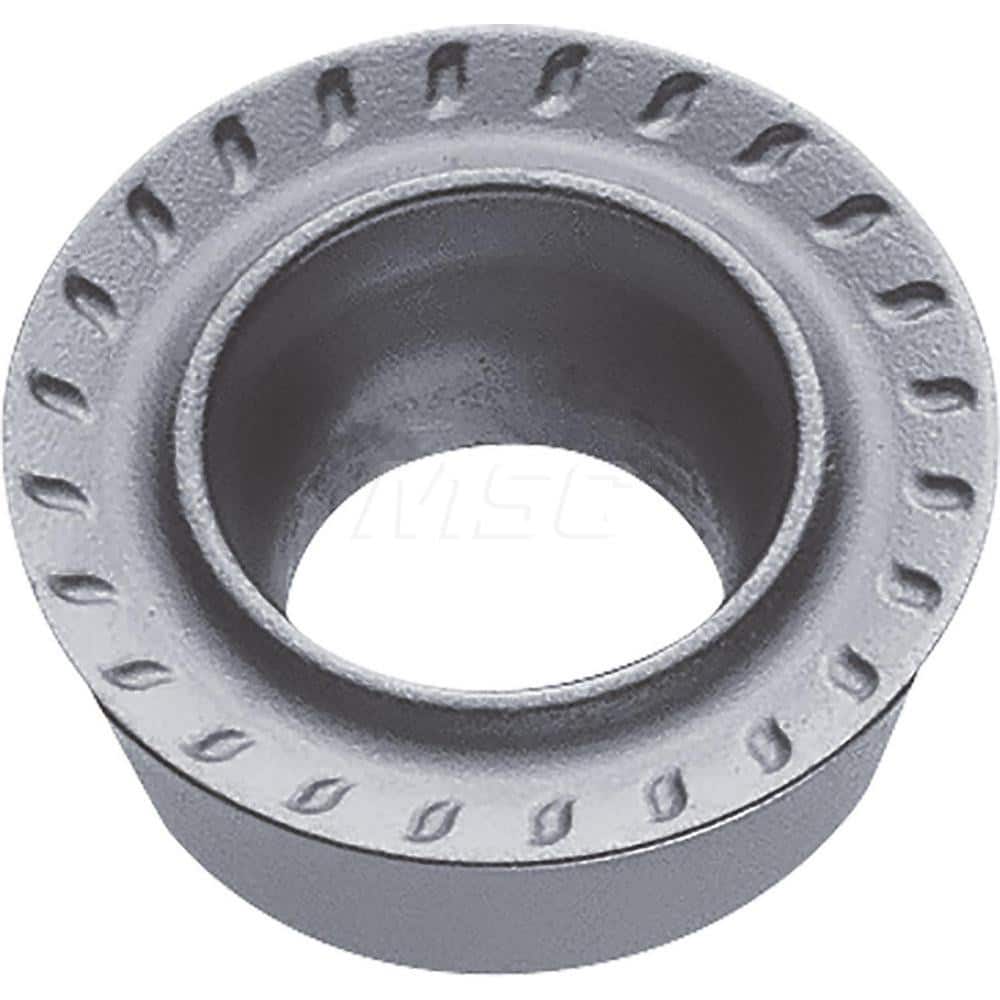

Kyocera RDMT 08T2M0H KW10 Grade Uncoated Carbide, Round, Positive Rake Angle, Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron
Item #: 18251819
Brand: Kyocera
Model #: TWE04966
Product Specifications
| Insert Style | RDMT |
| Insert Size | 08T2 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Inscribed Circle (mm) | 8.00 |
| Insert Hand | Neutral |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Maximum Depth of Cut (mm) | 8.00 |
| Rake | Positive |
| Ansi Code | RDMT08T2M0HKW10 |
| Iso Code | RDMT08T2M0-H |
| Cutting Edge Style | Chamfered & Honed |
| Manufacturers Catalog Number | RDMT08T2M0HKW10 |
| Cutter Series Compatibility | MRP |
| Chip Breaker | M0H |
| Cutting Direction | Neutral |
| Shape | Round |
| Insert Holding Method | Screw |
| Thickness (mm) | 2.78 |
| Coating/Finish | WC/Co |
| Length | 8.00 |
| Width (Mm - 2 Decimals) | 8.00 |
