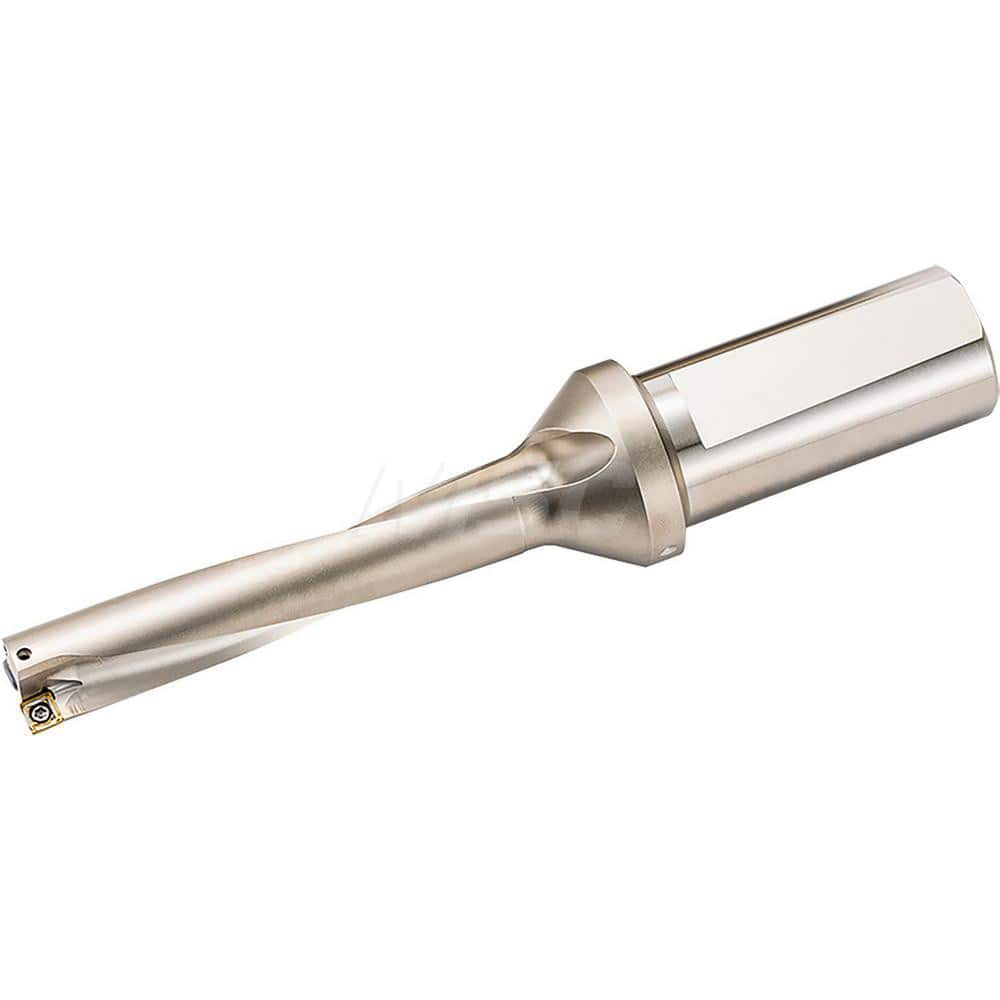

Kyocera S32DRV300M509, DRV Magic Drill 30.00mm Cutting Diameter, 32.00mm Shank Diameter, 5xD, Coolant-Through Indexable Insert Drill
Item #: 18250076
Brand: Kyocera
Model #: THD11695
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 30.00 |
| Drill Diameter (Decimal Inch) | 1.1811 |
| Drill Diameter (mm) | 30.00 |
| Maximum Drill Depth (mm) | 150.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 5xD |
| Series | DRV |
| Body Length | 173.00 |
| Shank Length (mm) | 59.00 |
| Overall Length/Projection (mm) | 232.00 |
| Insert Compatibility | SCMT090405-?-E; SCMT090410-?-I |
| Collar Diameter (mm) | 41.00 |
| Extension From Holder (Inch) | 6.8110 |
| Coolant Through | Yes |
