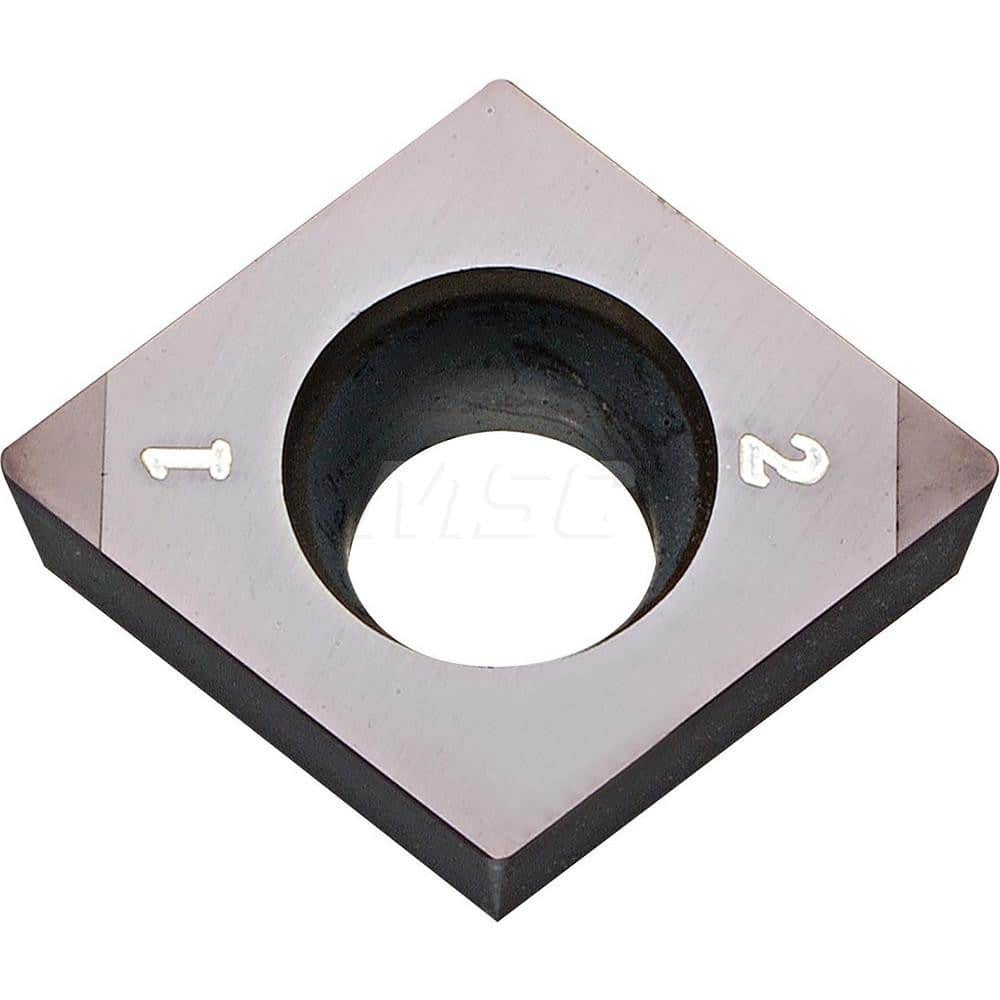

Kyocera CCMW 3251S00525MES KBN475 Grade CBN, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (K) Nodular Cast Iron
Item #: 18249755
Brand: Kyocera
Model #: TFB01314
Product Specifications
| Insert Style | CCMW |
| Insert Shape Code | C |
| Insert Size Code | 3251 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN475 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | K |
| Iso Code | CCMW09T304S01225MES |
| Manufacturers Catalog Number | CCMW3251S00525MESKBN475 |
| Chip Breaker | W |
| Style | CCMW |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
