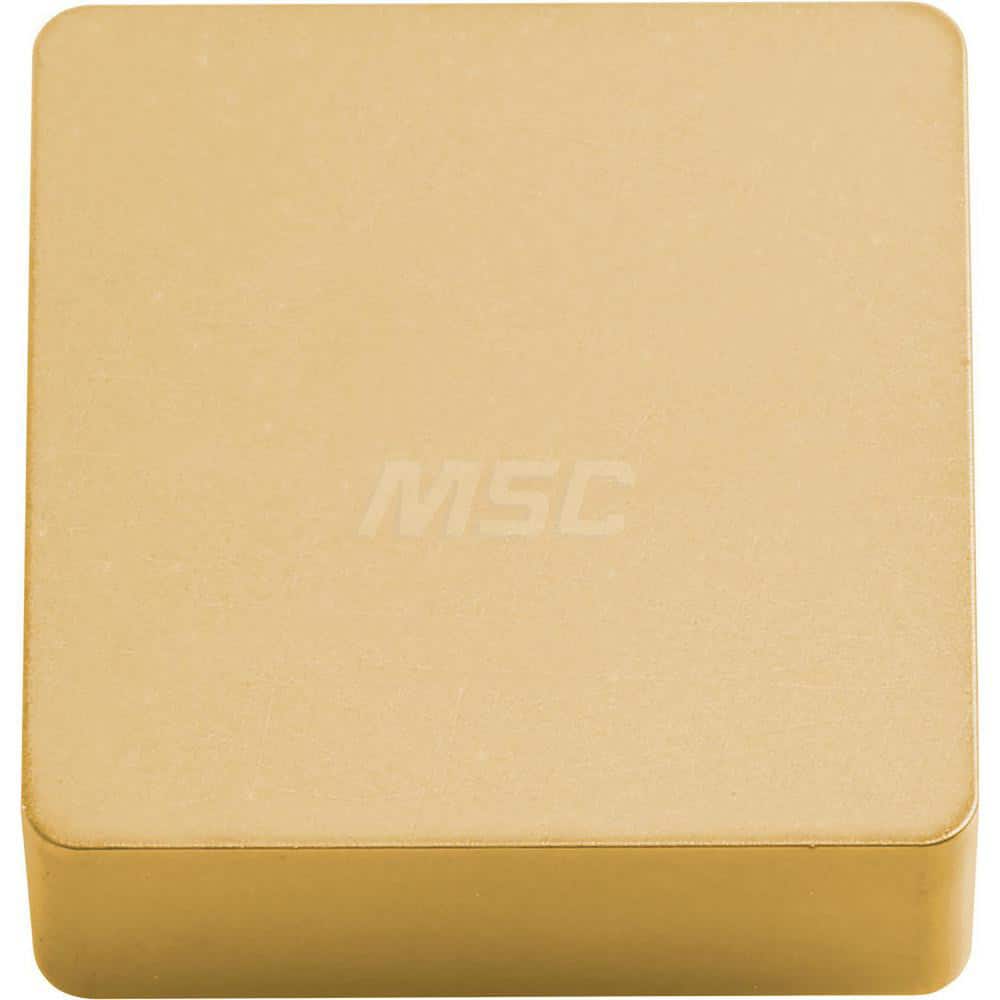

Kyocera SNM 322 KBN900 Grade CBN, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron, (H) Hardened Materials
Item #: 18249359
Brand: Kyocera
Model #: TBP04000
Product Specifications
| Insert Style | SNM |
| Insert Shape Code | S |
| Insert Size Code | 322 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN900 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Insert Length (Inch) | 3/8 |
| Primary Workpiece Material | H; K |
| Iso Code | SNMN090308 |
| Manufacturers Catalog Number | SNM322KBN900 |
| Chip Breaker | N |
| Style | SNM |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
