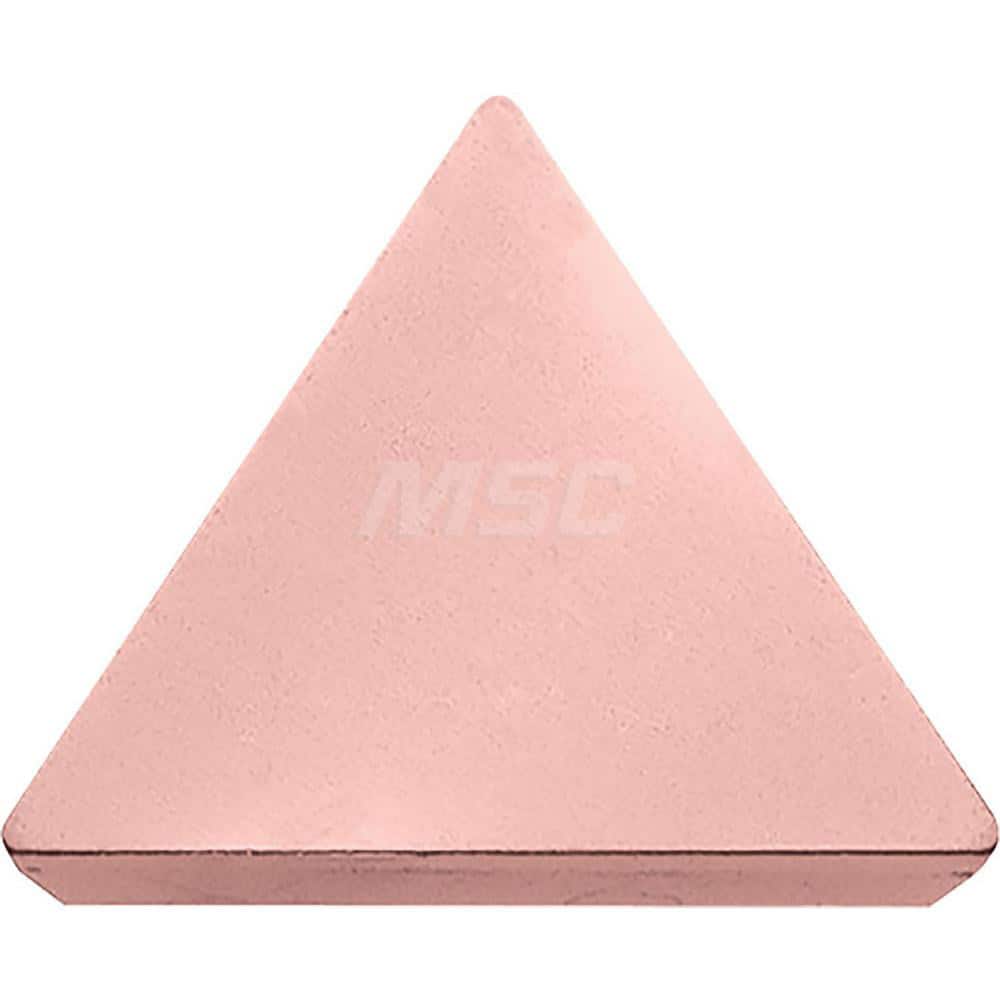

Kyocera TPM 222 CA315 Grade CVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (K) Gray Cast Iron, (K) Nodular Cast Iron
Item #: 18248849
Brand: Kyocera
Model #: TMD06601
Product Specifications
| Insert Style | TPM |
| Insert Shape Code | T |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA315 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Primary Workpiece Material | K |
| Iso Code | TPMN110308 |
| Manufacturers Catalog Number | TPM222CA315 |
| Chip Breaker | N |
| Style | TPM |
| Full Radius | No |
| Coating/Finish | Ti; TiCN; Al2O3 |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
