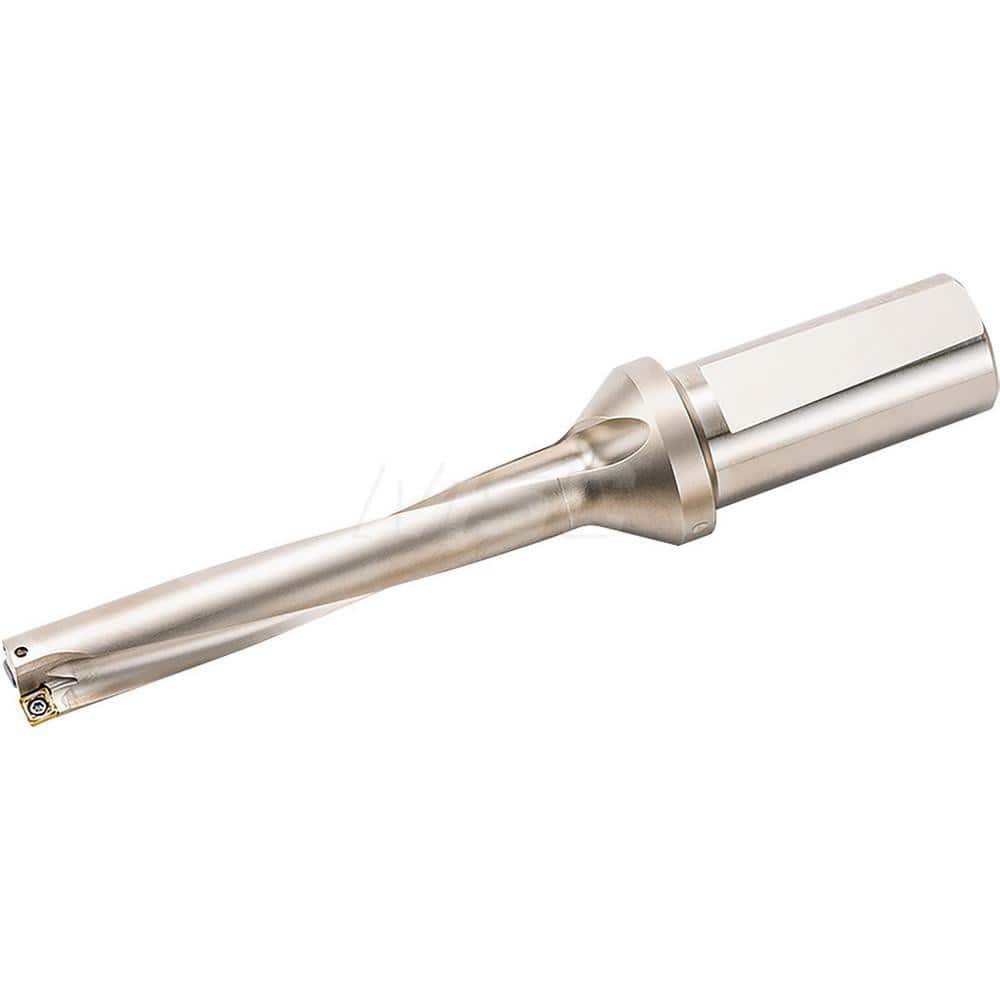

Kyocera S50DRV500M617, DRV Magic Drill 50.00mm Cutting Diameter, 50.00mm Shank Diameter, 6xD, Coolant-Through Indexable Insert Drill
Item #: 18247957
Brand: Kyocera
Model #: THD12000
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 50.00 |
| Drill Diameter (Decimal Inch) | 1.9685 |
| Drill Diameter (mm) | 50.00 |
| Maximum Drill Depth (mm) | 300.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 6xD |
| Series | DRV |
| Body Length | 329.00 |
| Shank Length (mm) | 69.00 |
| Overall Length/Projection (mm) | 398.00 |
| Insert Compatibility | SCMT170610-?-I; SCMT170608-?-E |
| Collar Diameter (mm) | 59.00 |
| Coolant Through | Yes |
