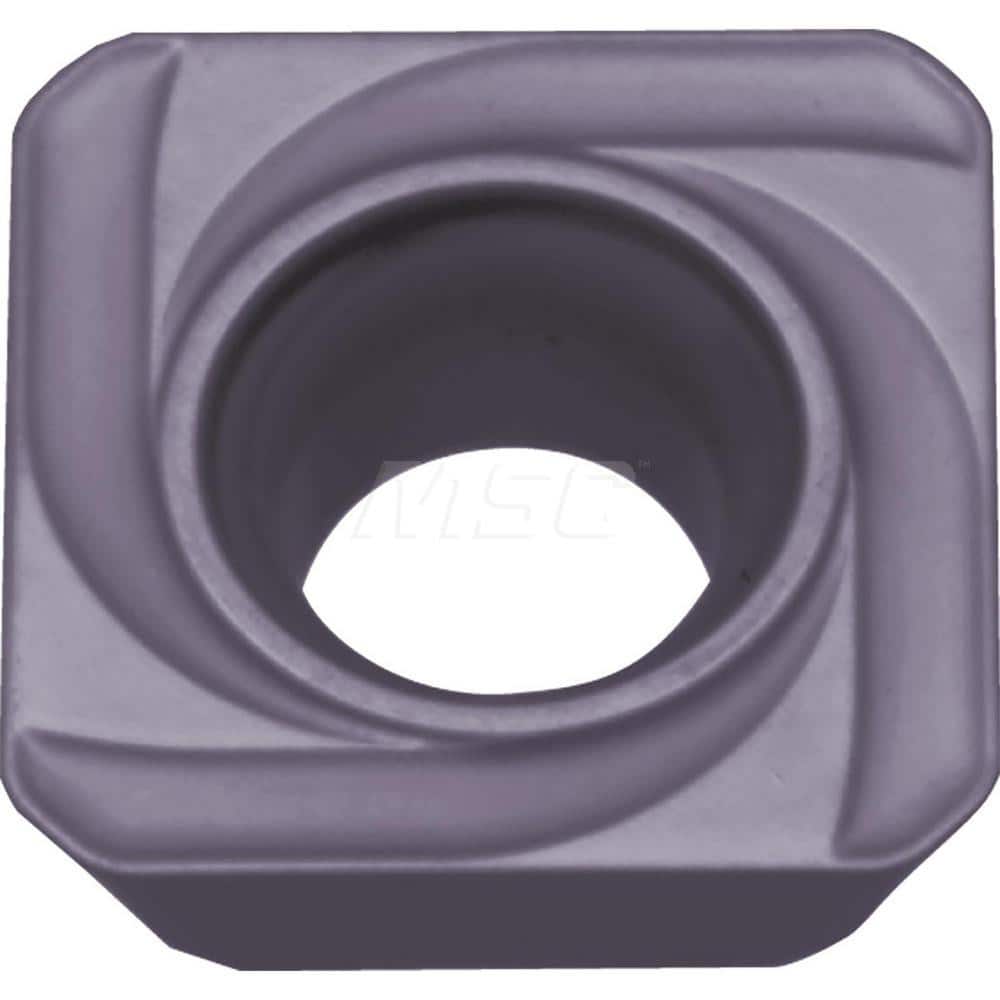

Kyocera SDMT 1204AESRH PR1225 Grade PVD Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Stainless Steel, (S) Heat-Resistant Alloy
Item #: 18247924
Brand: Kyocera
Model #: TKB05220
Product Specifications
| Insert Style | SDMT |
| Insert Size | 1204 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | PR1225 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (mm) | 1.00 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (mm) | 12.00 |
| Rake | Positive |
| Ansi Code | SDMT1204AESRHPR1225 |
| Iso Code | SDMT1204AESRH |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SDMT1204AESRHPR1225 |
| Chip Breaker | H |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating/Finish | Megacoat |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
