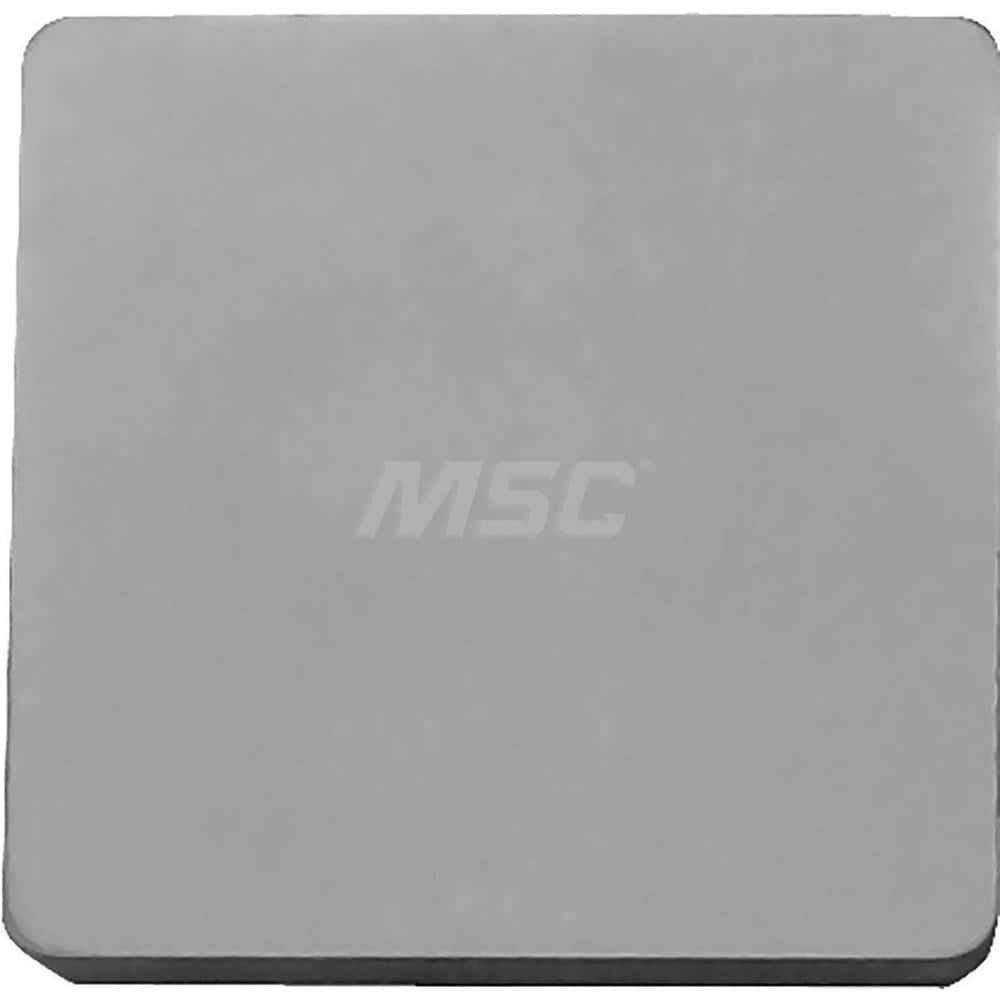

Kyocera SPG 433 TN100M Grade Uncoated Cermet, Square, Positive Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel
Item #: 18247213
Brand: Kyocera
Model #: TSP89026
Product Specifications
| Insert Style | SPG |
| Insert Size | 433 |
| Insert Material | Cermet |
| Width (Inch) | 1/2 |
| Manufacturer Grade | TN100M |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Neutral |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Ansi Code | SPG433TN100M |
| Iso Code | SPGN120312 |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | SPG433TN100M |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating/Finish | TiCN; NbC |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
