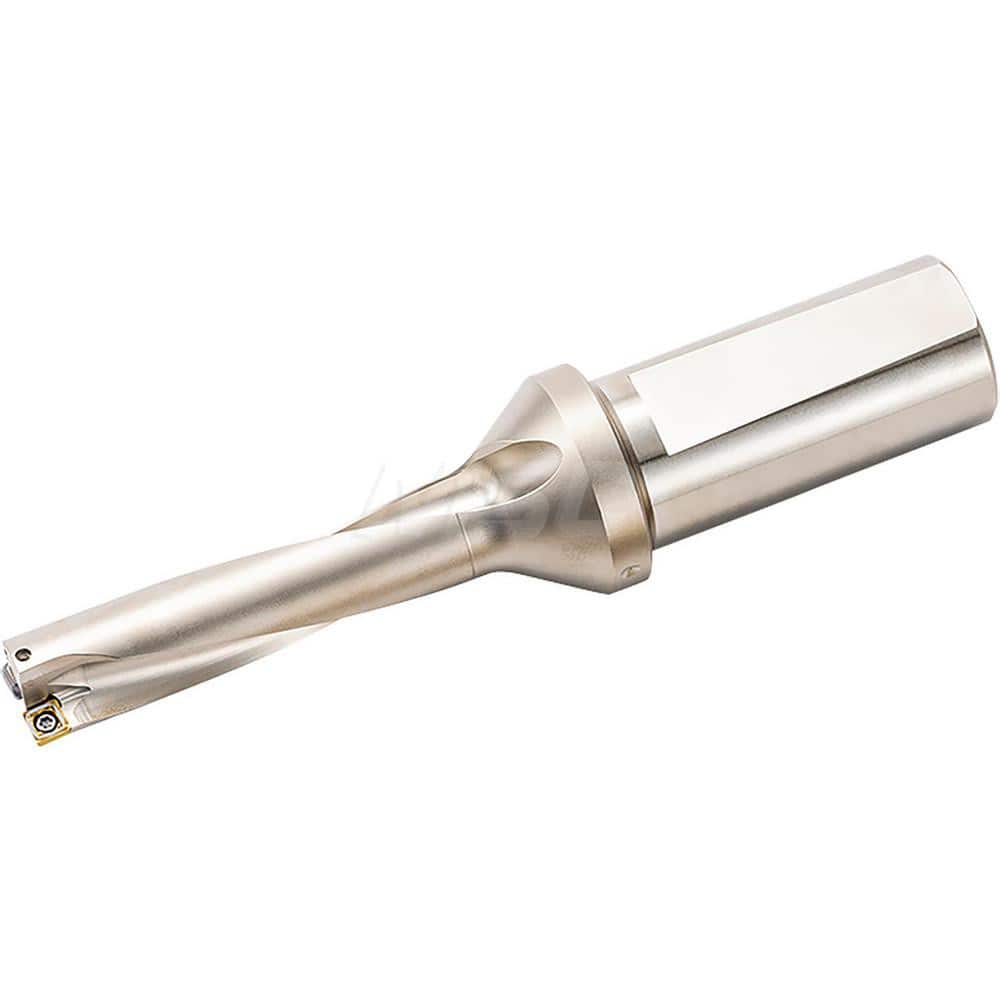

Kyocera S25DRV230M407, DRV Magic Drill 23.00mm Cutting Diameter, 25.00mm Shank Diameter, 4xD, Coolant-Through Indexable Insert Drill
Item #: 18246363
Brand: Kyocera
Model #: THD11625
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 23.00 |
| Drill Diameter (Decimal Inch) | 0.9055 |
| Drill Diameter (mm) | 23.00 |
| Maximum Drill Depth (mm) | 92.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 4xD |
| Series | DRV |
| Body Length | 113.00 |
| Shank Length (mm) | 54.00 |
| Overall Length/Projection (mm) | 167.00 |
| Insert Compatibility | SCMT070305-?-E; SCMT070310-?-I |
| Collar Diameter (mm) | 32.00 |
| Extension From Holder (Inch) | 4.4488 |
| Coolant Through | Yes |
