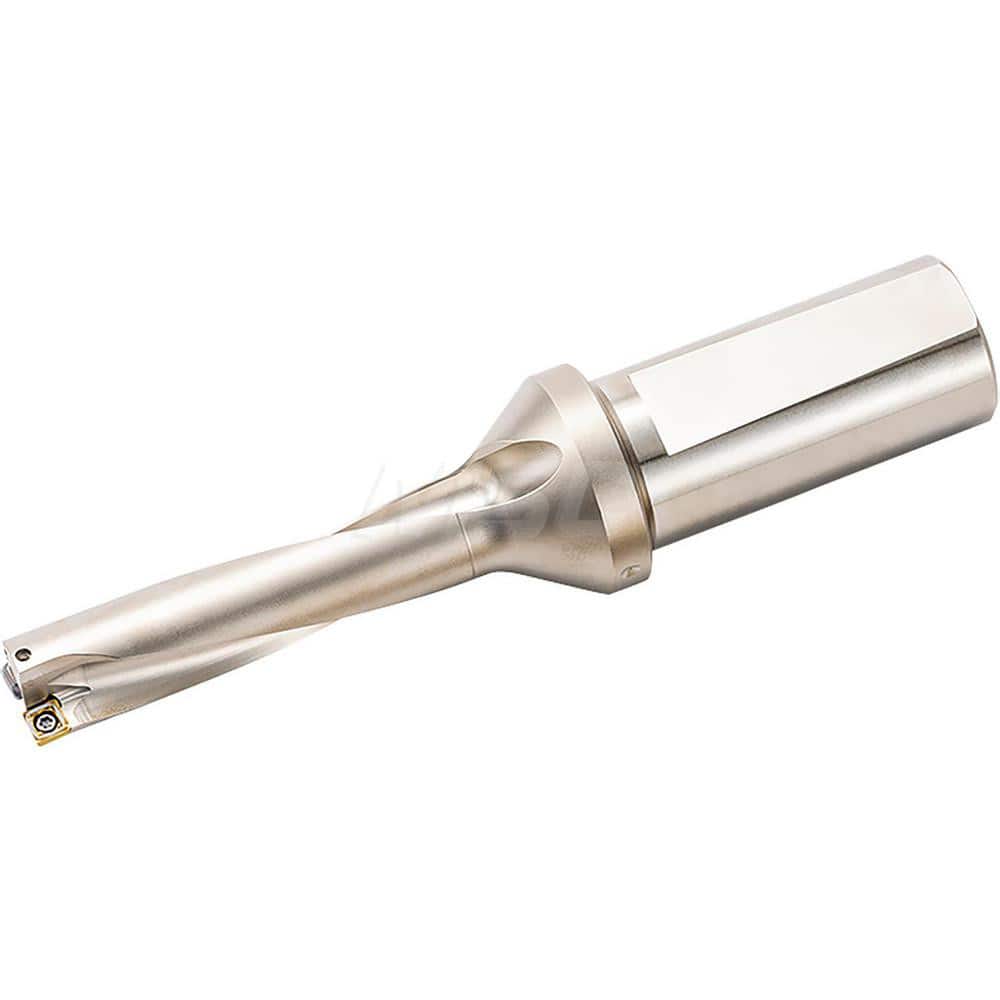

Kyocera S40DRV460M414, DRV Magic Drill 46.00mm Cutting Diameter, 40.00mm Shank Diameter, 4xD, Coolant-Through Indexable Insert Drill
Item #: 18244806
Brand: Kyocera
Model #: THD11936
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 46.00 |
| Drill Diameter (Decimal Inch) | 1.8110 |
| Drill Diameter (mm) | 46.00 |
| Maximum Drill Depth (mm) | 184.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 4xD |
| Series | DRV |
| Body Length | 216.00 |
| Shank Length (mm) | 69.00 |
| Overall Length/Projection (mm) | 285.00 |
| Insert Compatibility | SCMT140510-?-I; SCMT140508-?-E |
| Collar Diameter (mm) | 54.00 |
| Extension From Holder (Inch) | 8.5039 |
| Coolant Through | Yes |
