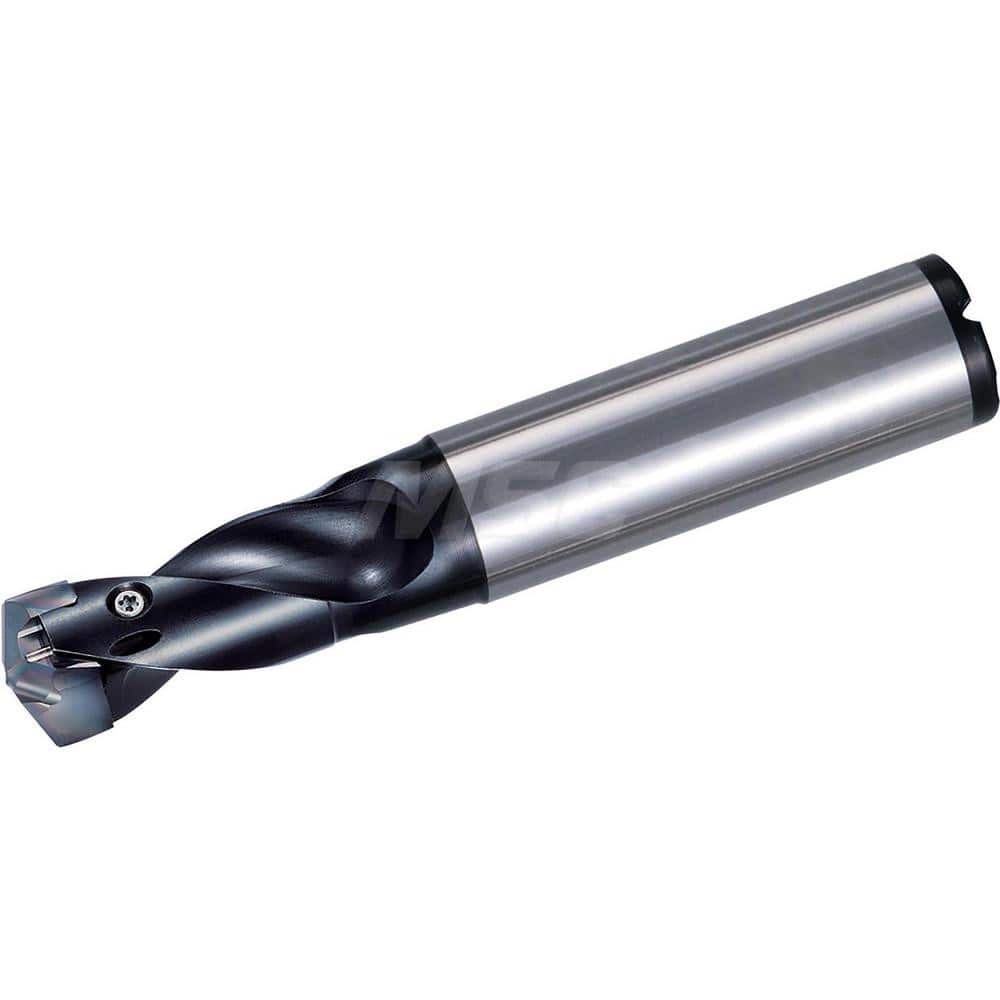

Replaceable Tip Drill: 23 to 23.99 mm Drill Dia, 36 mm Max Depth, 25 mm Straight-Cylindrical Shank Seat Size 23, 126 mm OAL, Through Coolant
Item #: 18243428
Brand: Kyocera
Model #: THD11512
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9055 |
| Minimum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (mm) | 23.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9445 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 36.00 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 23 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Overall Length (mm) | 126.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 70.00 |
| Shank Length (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 22 |
