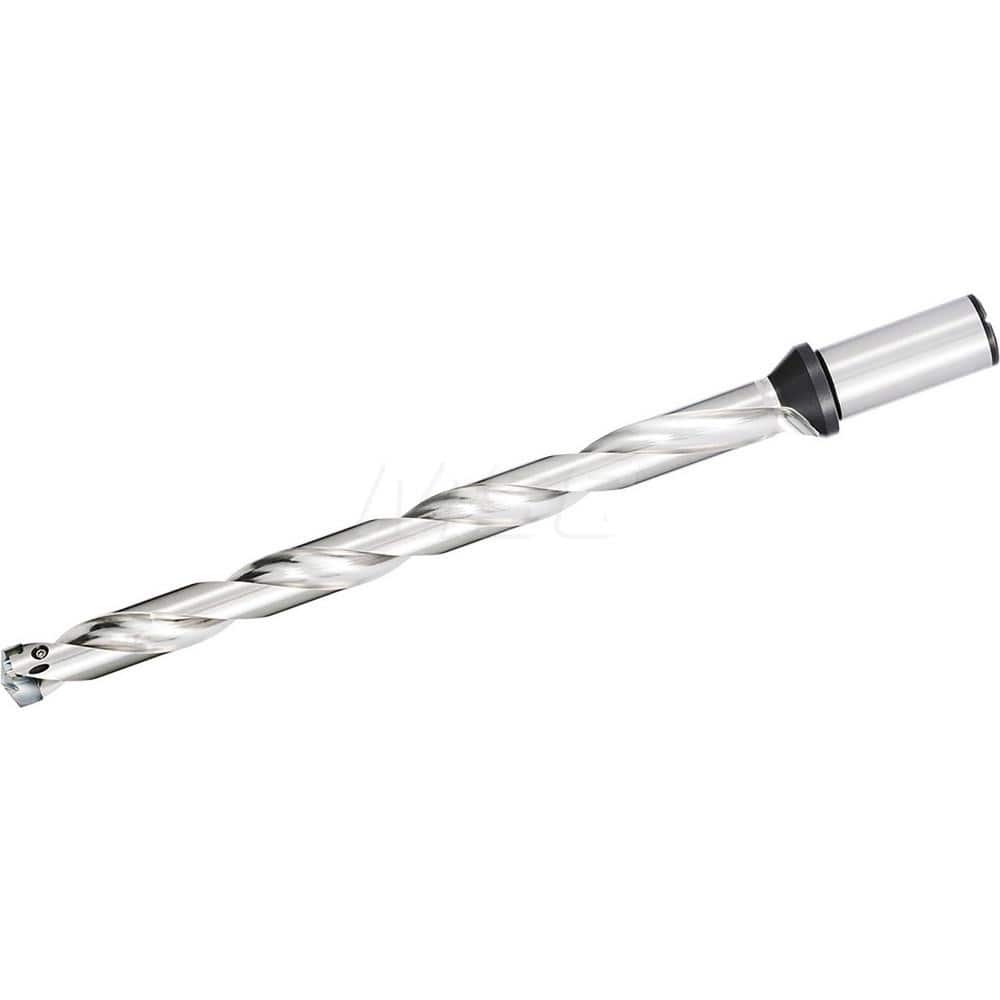

Replaceable Tip Drill: 24 to 24.99 mm Drill Dia, 300 mm Max Depth, 25 mm Flange Shank Seat Size 24, 391 mm OAL, Through Coolant
Item #: 18242172
Brand: Kyocera
Model #: THD11888
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 24.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9839 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 300.00 |
| Shank Type | Flange |
| Insert Style | DA |
| Insert Seat Size | 24 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 200.00 |
| Overall Length (mm) | 391.00 |
| Series | DRA |
| Toolholder Style | SF |
| Body Length | 335.00 |
| Shank Length (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 5 |
