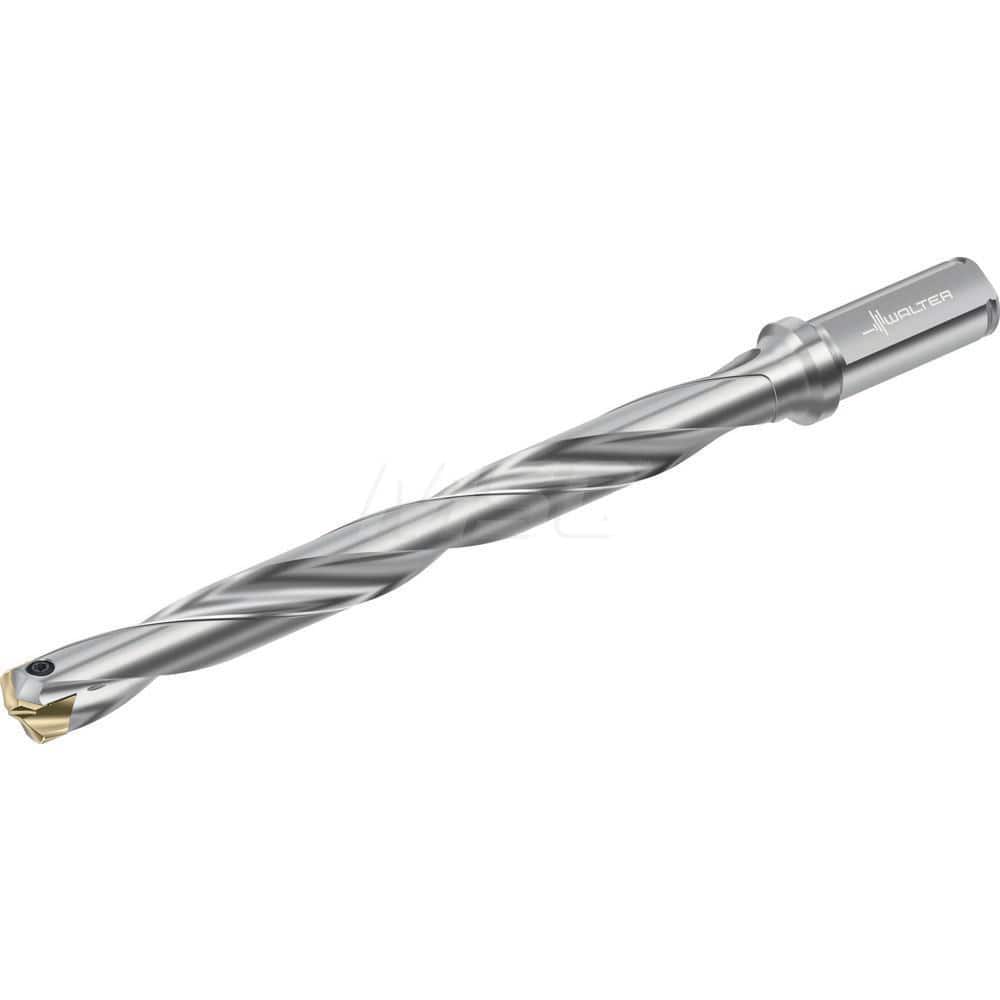

Replaceable Tip Drill: 15 to 15.99 mm Drill Dia, 150 mm Max Depth, Flatted Shank Uses P6000 Inserts, 233 mm OAL, Through Coolant
Item #: 18180943
Brand: Walter
Model #: 8061654
Product Specifications
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Depth (mm) | 150.00 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Tool Material | Steel |
| Compatible Insert Style | P6000 |
| Compatible Insert Size Code | 600x |
| Overall Length (mm) | 233.00 |
| Series | D4140 |
| Toolholder Style | D4140 |
| Flute Length (mm) | 165.00 |
| Body Length | 182.27 |
| Shank Length (mm) | 48.00 |
| Tool Application | Drilling |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coolant Through | Yes |
