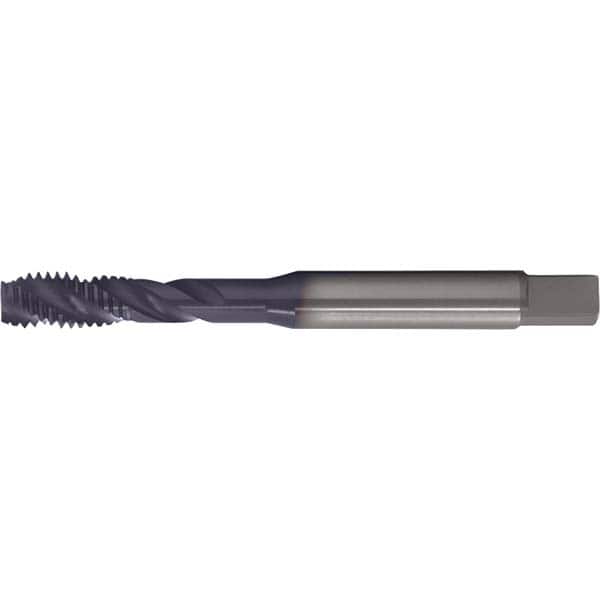

Spiral Flute Tap: M4 x 0.70, Metric, 3 Flute, Modified Bottoming, 6H Class of Fit, TiAlN Finish 0.827″ Thread Length, 2.4803″ OAL, Right Hand Flute, Right Hand Thread, Series PRO-892SF
Item #: 18156760
Brand: Cleveland
Model #: C89236
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (mm) | M4 x 0.70 |
| Thread Standard | Metric |
| Thread Pitch (mm) | 0.70 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.8270 |
| Overall Length (Decimal Inch) | 2.4803 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | HSS-E |
| Helix Angle | 38 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Neck Length (Decimal Inch) | 0.4330 |
| Tapping Depth (mm) | 76.20 |
| Square Length (mm) | 6.35 |
| Square Length (Decimal Inch) | 0.2500 |
| Square Size (Decimal Inch) | 0.2500 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PRO-892SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 6H |
| Product Service Code | 5133 |
