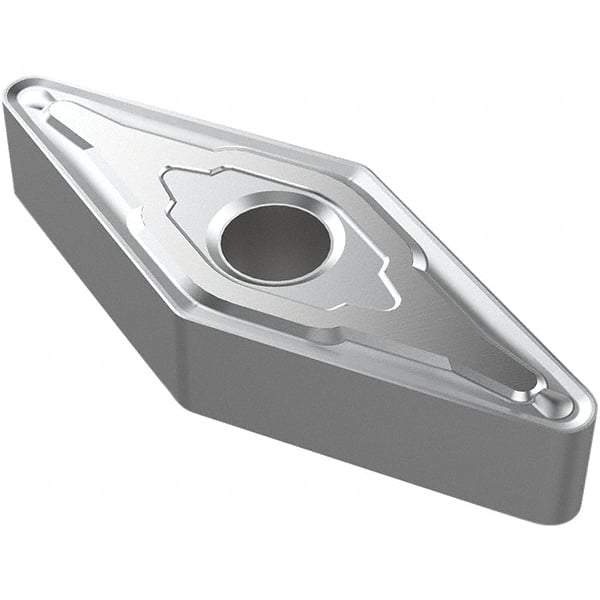

Seco - VNMG333 M3 Grade TP2501 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, Neutral Hand, 3/64" Corner Radius
Item #: 17906405
Brand: Seco
Model #: 03169658
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 333 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | TP2501 |
| Coating | TiCN/AI2O3/TiN |
| Material Grade | C2/C3 |
| Chip Breaker | M3 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Lead Angle | 95.000 |
| Rake | Negative |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Chamfered & Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
