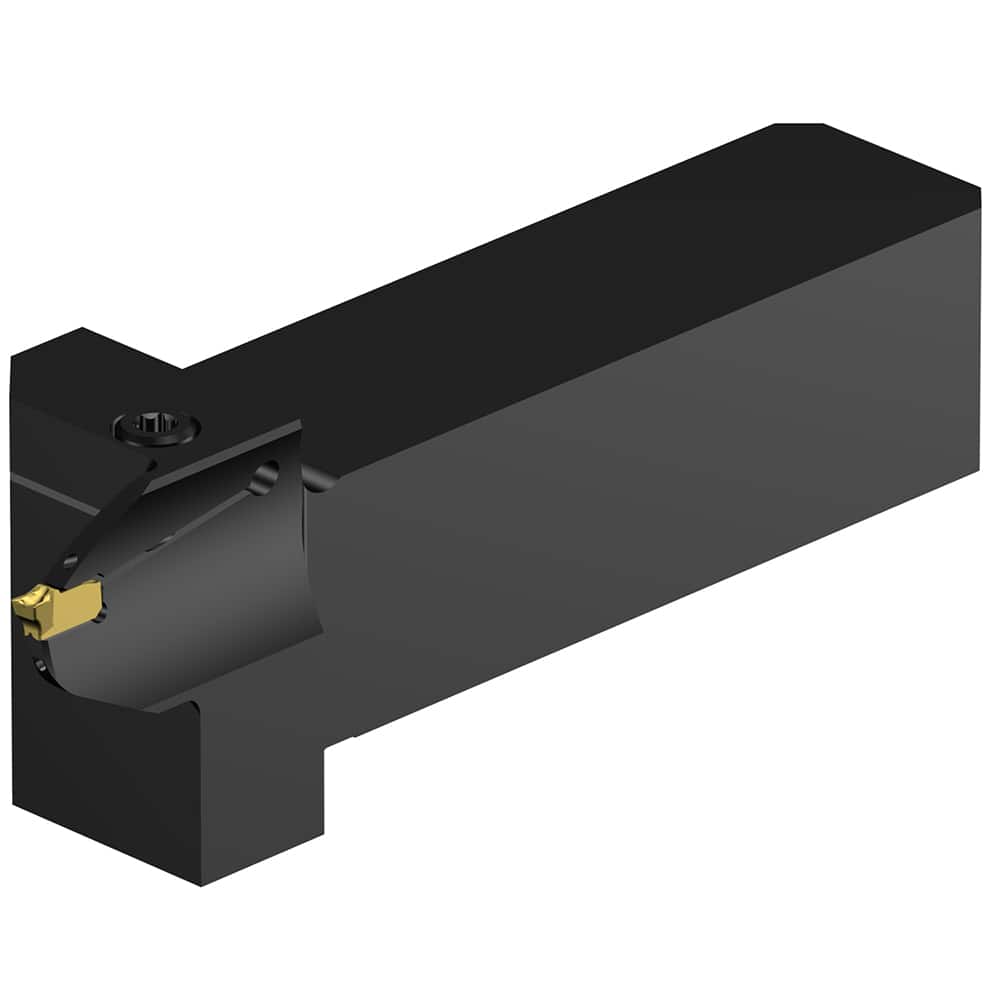

Indexable Grooving Toolholder: QS-QI-RFG15C16-024B, Internal Right Hand, 1.5748″ Max Groove Width 1.0000″ Shank Height, 1″ Shank Width, Through Coolant
Item #: 17698465
Brand: Sandvik Coromant
Model #: 7994223
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Insert Seat Size | G |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.9449 |
| Toolholder Style | QS-QI-RF..C..B(INCH) |
| Maximum Groove Width (Decimal Inch) | 1.5748 |
| Insert Holding Method | Clamp |
| Insert Compatibility | QI-NG-0300-0003-TF |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut QI |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.6850 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (Inch) | 1 |
| Head Length (Decimal Inch) | 2.3622 |
| Vibration Dampening | No |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Manufacturers Catalog Number | QS-QI-RFG15C16-024B |
| Coolant Through | Yes |
