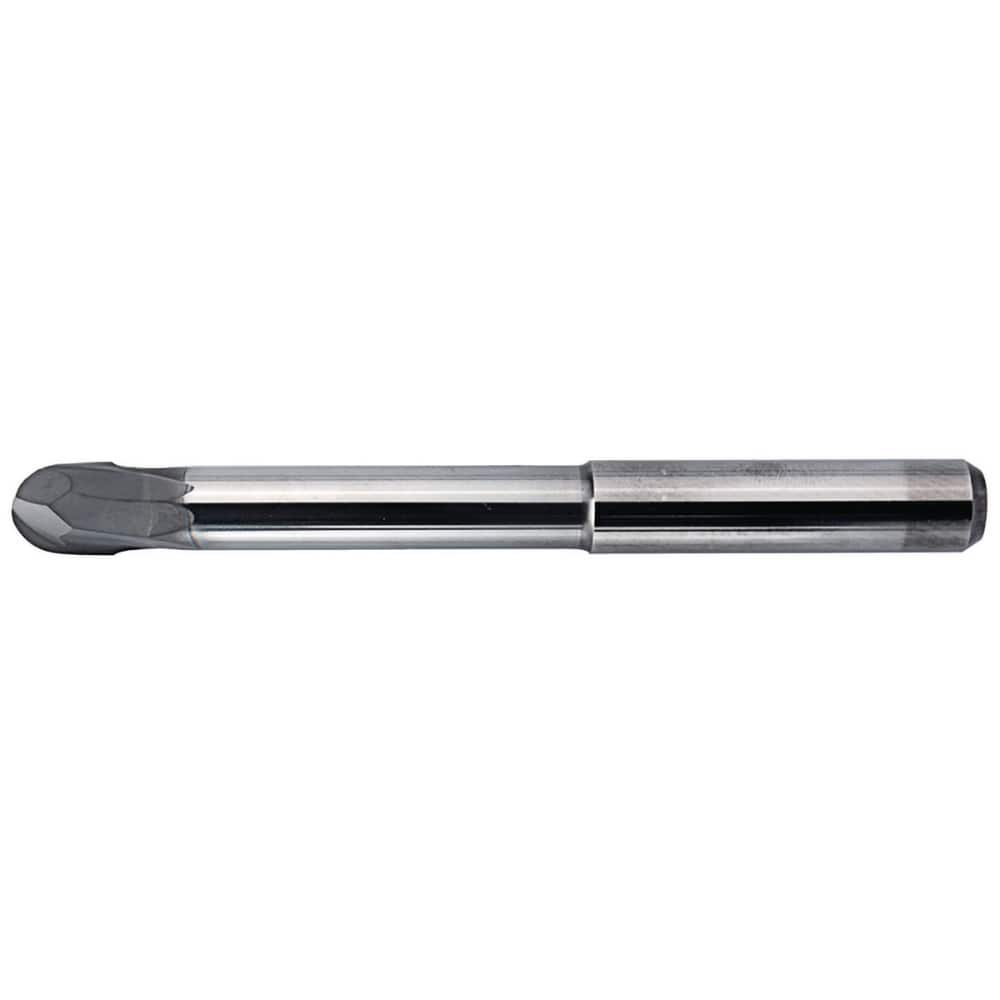

Ball End Mill: 0.315″ Dia, 0.315″ LOC, 2 Flute, Solid Carbide 90 mm OAL, 8 mm Shank Dia, 20 ° Helix, AlTiN Coated, Single End
Item #: 17695511
Brand: Kennametal
Model #: 6524832
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Mill Diameter (mm) | 8.00 |
| Length of Cut (mm) | 8.00 |
| End Mill Material | Solid Carbide |
| Helix Angle | 20 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Nose Radius (Decimal Inch) | 0.1575 |
| Reach Length (mm) | 8.00 |
| Reach Length (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3150 |
| Manufacturers Catalog Number | F2AL0800AWL20 |
