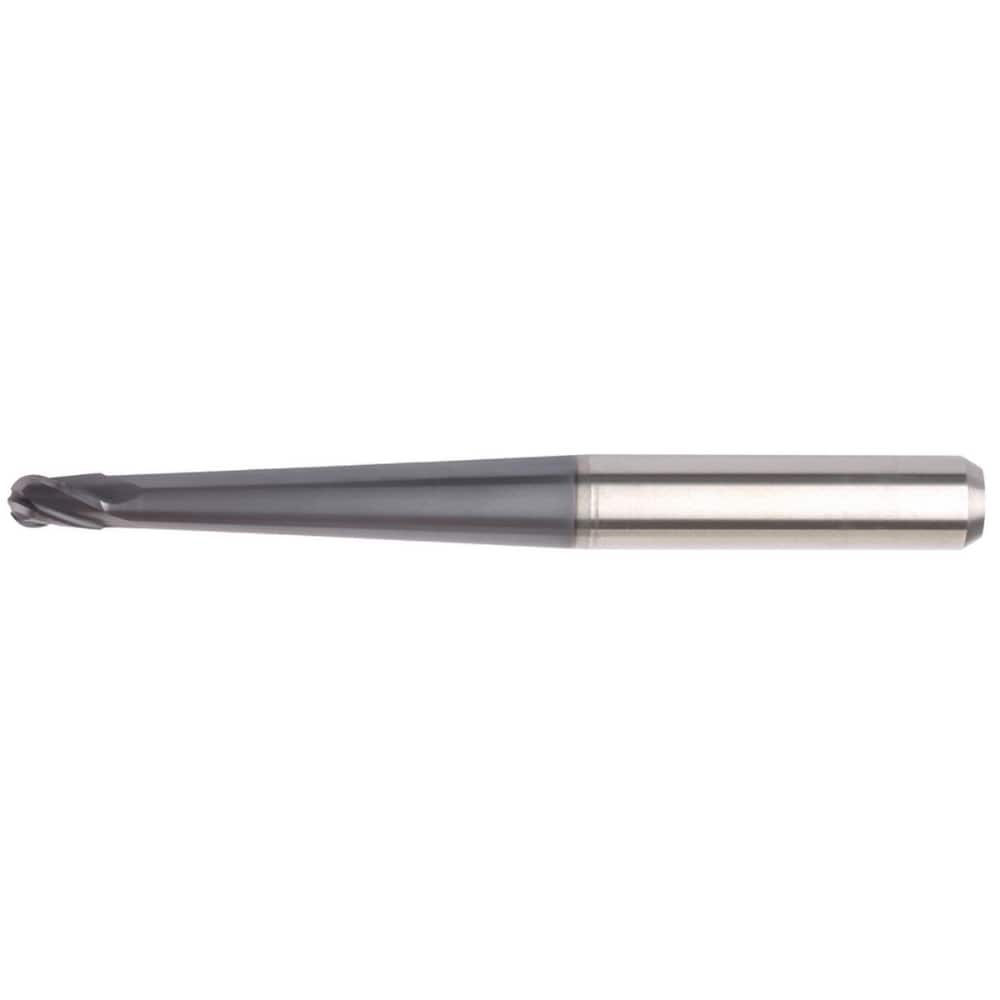

Ball End Mill: 0.2362″ Dia, 0.315″ LOC, 4 Flute, Solid Carbide 75 mm OAL, 8 mm Shank Dia, 28 ° Helix, AlTiN Coated, Single End
Item #: 17695123
Brand: Kennametal
Model #: 6433717
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2362 |
| Mill Diameter (mm) | 6.00 |
| Length of Cut (mm) | 8.00 |
| End Mill Material | Solid Carbide |
| Helix Angle | 28 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Nose Radius (Decimal Inch) | 0.1181 |
| Reach Length (mm) | 8.00 |
| Reach Length (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 2.9528 |
| Overall Length (mm) | 75.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3150 |
| Manufacturers Catalog Number | F4AL0600AWM30L080 |
