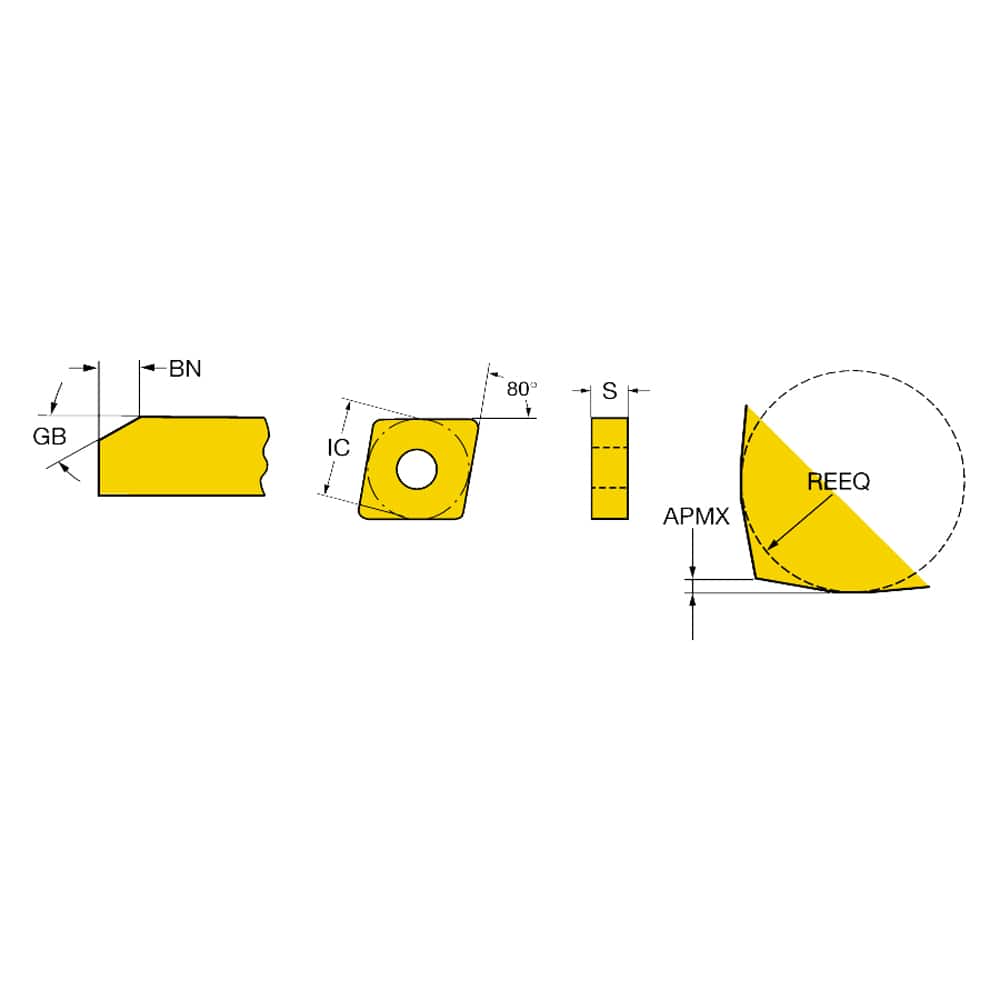

Turning Insert: CNGX1204L02518AXA 7014, Cubic Boron Nitride Uncoated Finish, Neutral, N/A Diamond, Series T-Max P
Item #: 17674797
Brand: Sandvik Coromant
Model #: 7941843
Product Specifications
| Insert Style | CNGX |
| Insert Shape Code | C |
| Insert Size Code | 1204 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | 7014 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | Uncoated |
| Primary Workpiece Material | Hard Material |
| Iso Code | CNGX1204L025-18AXA 7014 |
| Manufacturers Catalog Number | CNGX1204L025-18AXA 7014 |
| Chip Breaker | XA |
| Coating/Finish | Uncoated |
